Please send RFQ , we will respond immediately.

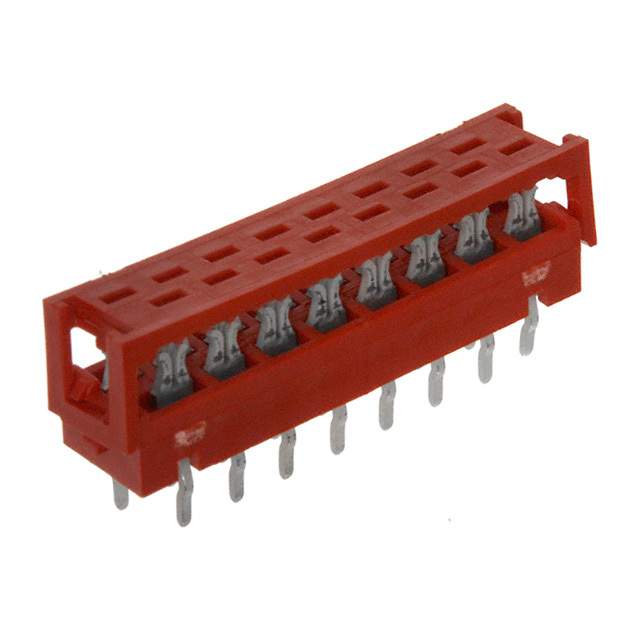

| Part Number | 1-215570-6 | 1-215570-8 | 1-215570-0 | 1-215570-2 | 1-215570-4 |
|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active |
| Connector Type | Ribbon Cable, DIP Header | Ribbon Cable, DIP Header | Ribbon Cable, DIP Header | Ribbon Cable, DIP Header | Ribbon Cable, DIP Header |
| Number of Positions | 16 | 18 | 10 | 12 | 14 |
| Cable Pitch | 0.050" (1.27mm) | 0.050" (1.27mm) | 0.050" (1.27mm) | 0.050" (1.27mm) | 0.050" (1.27mm) |
| Board-Side Pitch | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) |
| Number of Rows | 2 | 2 | 2 | 2 | 2 |
| Row Spacing | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) |
| Mounting Type | Through Hole, Press-Fit | Through Hole, Press-Fit | Through Hole, Press-Fit | Through Hole, Press-Fit | Through Hole, Press-Fit |
| Cable Termination | IDC | IDC | IDC | IDC | IDC |
| Wire Gauge | 28 AWG, Stranded or Solid | 28 AWG, Stranded or Solid | 28 AWG, Stranded or Solid | 28 AWG, Stranded or Solid | 28 AWG, Stranded or Solid |
| Features | Feed Through | Feed Through | Feed Through | Feed Through | Feed Through |
| Contact Finish | Tin | Tin | Tin | Tin | Tin |
| Contact Finish Thickness | - | - | - | - | - |
| Color | Red | Red | Red | Red | Red |
