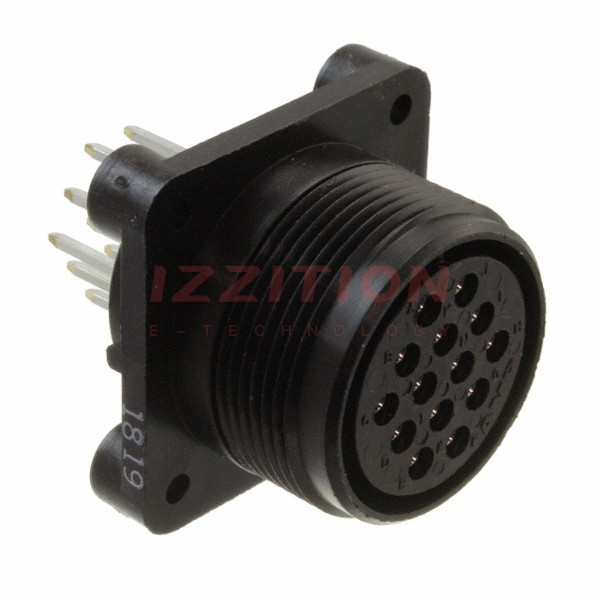

| Part Number | 1-213928-1 | 1-213928-2 | 1-213828-1 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets | Receptacle, Female Sockets |
| Number of Positions | 14 | 14 | 37 |
| Shell Size - Insert | 20-14 | 20-14 | 23-37 |
| Shell Size, MIL | - | - | - |
| Mounting Type | Panel Mount | Panel Mount | Panel Mount, Through Hole |
| Mounting Feature | Flange | Flange | Flange |
| Termination | Crimp | Crimp | Solder |
| Fastening Type | Threaded | Threaded | Threaded |
| Orientation | A | Keyed | B |
| Primary Material | Plastic | Plastic | Plastic |
| Shell Material | Polyamide (PA), Nylon | Polyamide (PA), Nylon | Thermoplastic |
| Shell Finish | - | - | - |
| Contact Finish - Mating | Tin | Tin | Tin |
| Color | - | - | Black |
| Ingress Protection | - | - | - |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 | UL94 V-0 |
| Features | - | - | - |
| Shielding | - | - | Unshielded |
| Current Rating (Amps) | - | - | - |
| Voltage Rating | 250VAC/DC | 250VAC/DC | 250VAC/DC |
| Cable Opening | - | - | - |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 125°C |
