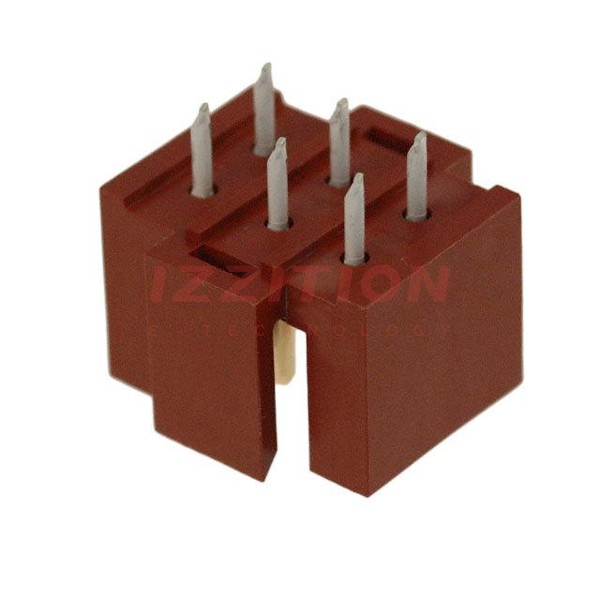

| Part Number | 1-207158-1 | 1-207158-0 |
|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active |
| Connector Type | Header | Header |
| Contact Type | Male Pin | Male Pin |
| Pitch - Mating | 0.197" (5.00mm) | 0.197" (5.00mm) |
| Number of Positions | 6 | 6 |
| Number of Rows | 2 | 2 |
| Row Spacing - Mating | 0.197" (5.00mm) | 0.197" (5.00mm) |
| Number of Positions Loaded | All | All |
| Style | Board to Board or Cable | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall | Shrouded - 4 Wall |
| Mounting Type | Through Hole | Through Hole |
| Termination | Solder | Solder |
| Fastening Type | Latch Lock | Latch Lock |
| Contact Length - Mating | - | - |
| Contact Length - Post | 0.181" (4.60mm) | 0.181" (4.60mm) |
| Overall Contact Length | - | - |
| Insulation Height | 0.464" (11.79mm) | 0.464" (11.79mm) |
| Contact Shape | Circular | Circular |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin | Tin |
| Contact Material | Brass | Brass |
| Insulation Material | Polyamide (PA), Nylon | Polyamide (PA), Nylon |
| Features | - | Mounting Flange |
| Operating Temperature | -55°C ~ 130°C | -55°C ~ 130°C |
| Ingress Protection | - | - |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Insulation Color | Black, Red | Black, Red |
| Current Rating (Amps) | 7.5A | 7.5A |
| Voltage Rating | 600V | 600V |
