1-207121-0
  • Share:

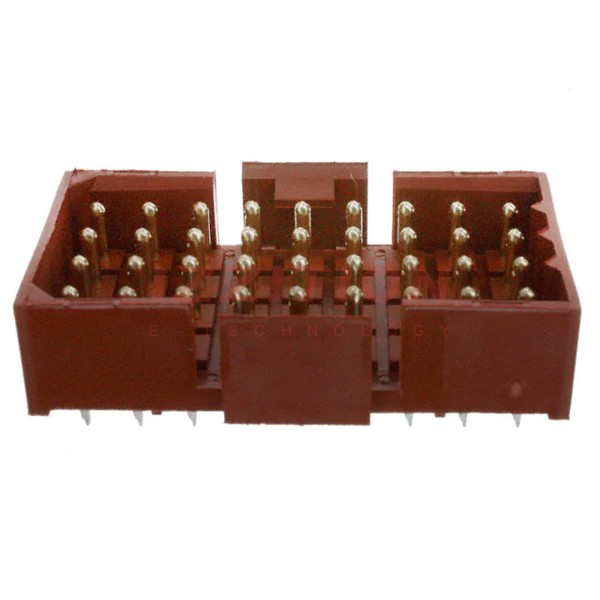

TE Connectivity AMP Connectors 1-207121-0

Manufacturer No:
1-207121-0
Manufacturer:
TE Connectivity AMP Connectors
Package:
Tray
Datasheet:
1-207121-0 Datasheet
ECAD Model:
-
Description:
CONN HEADER VERT 36POS 5MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.197" (5.00mm)
Number of Positions:36
Number of Rows:4
Row Spacing - Mating:0.197" (5.00mm)
Number of Positions Loaded:All
Style:Board to Board or Cable
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Latch Lock
Contact Length - Mating:-
Contact Length - Post:0.181" (4.60mm)
Overall Contact Length:-
Insulation Height:0.464" (11.79mm)
Contact Shape:Circular
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:30.0µin (0.76µm)
Contact Finish - Post:Tin
Contact Material:Brass
Insulation Material:Polyamide (PA), Nylon
Features:-
Operating Temperature:-55°C ~ 130°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black, Red
Current Rating (Amps):7.5A
Voltage Rating:600V
0 Remaining View Similar

In Stock

$37.00
7

Please send RFQ , we will respond immediately.
