Please send RFQ , we will respond immediately.

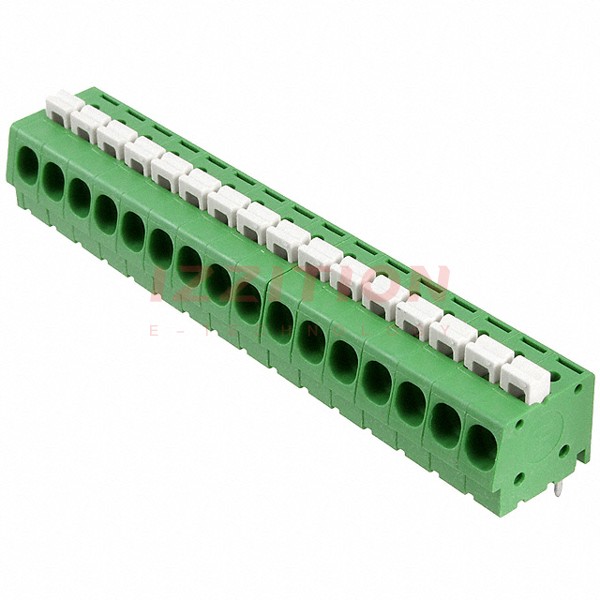

| Part Number | 1-1986712-6 | 1-1986712-7 | 1-1986712-9 | 1-1986712-8 | 1-1986711-6 | 1-1986712-0 | 1-1986712-1 | 1-1986712-2 | 1-1986712-3 | 1-1986712-4 | 1-1986712-5 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Number of Levels | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Positions Per Level | 16 | 17 | 19 | 18 | 16 | 10 | 11 | 12 | 13 | 14 | 15 |
| Pitch | 0.200" (5.08mm) | 0.200" (5.08mm) | 0.200" (5.08mm) | 0.200" (5.08mm) | 0.197" (5.00mm) | 0.200" (5.08mm) | 0.200" (5.08mm) | 0.200" (5.08mm) | 0.200" (5.08mm) | 0.200" (5.08mm) | 0.200" (5.08mm) |
| Mating Orientation | Horizontal with Board | Horizontal with Board | Horizontal with Board | Horizontal with Board | Horizontal with Board | Horizontal with Board | Horizontal with Board | Horizontal with Board | Horizontal with Board | Horizontal with Board | Horizontal with Board |
| Current | 16 A | 16 A | 16 A | 16 A | 16 A | 16 A | 16 A | 16 A | 16 A | 16 A | 16 A |
| Voltage | 300 V | 300 V | 300 V | 300 V | 300 V | 300 V | 300 V | 300 V | 300 V | 300 V | 300 V |
| Wire Gauge | 12-30 AWG | 12-30 AWG | 12-30 AWG | 12-30 AWG | 12-30 AWG | 12-30 AWG | 12-30 AWG | 12-30 AWG | 12-30 AWG | 12-30 AWG | 12-30 AWG |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Wire Termination | Screwless - Push Button Clamp | Screwless - Push Button Clamp | Screwless - Push Button Clamp | Screwless - Push Button Clamp | Screwless - Push Button Clamp | Screwless - Push Button Clamp | Screwless - Push Button Clamp | Screwless - Push Button Clamp | Screwless - Push Button Clamp | Screwless - Push Button Clamp | Screwless - Push Button Clamp |
| Features | Interlocking (Side) | Interlocking (Side) | Interlocking (Side) | Interlocking (Side) | Interlocking (Side) | Interlocking (Side) | Interlocking (Side) | Interlocking (Side) | Interlocking (Side) | Interlocking (Side) | Interlocking (Side) |
| Color | Green | Green | Green | Green | Green | Green | Green | Green | Green | Green | Green |
