Please send RFQ , we will respond immediately.

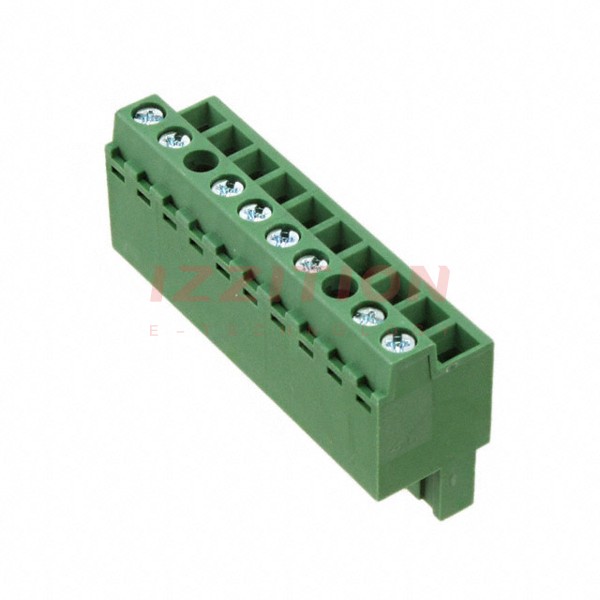

| Part Number | 1-1986300-0 | 1-1986370-0 | 1-1986300-1 | 1-1986300-2 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Active | Obsolete | Obsolete |
| Type | Plug, Female Sockets | Plug, Female Sockets | Plug, Female Sockets | Plug, Female Sockets |
| Number of Positions | 10 | 10 | 11 | 12 |
| Positions Per Level | 10 | 10 | 11 | 12 |
| Number of Levels | 1 | 1 | 1 | 1 |
| Pitch | 0.197" (5.00mm) | 0.138" (3.50mm) | 0.197" (5.00mm) | 0.197" (5.00mm) |
| Header Orientation | - | - | - | - |
| Plug Wire Entry | 180° | 90° | 180° | 180° |
| Termination Style | Screw - Pressure Clip | Screw - Rising Cage Clamp | Screw - Pressure Clip | Screw - Pressure Clip |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Current - IEC | - | - | - | - |
| Voltage - IEC | - | - | - | - |
| Current - UL | 16 A | 11 A | 16 A | 16 A |
| Voltage - UL | 300 V | 300 V | 300 V | 300 V |
| Wire Gauge or Range - AWG | 14-24 AWG | 14-30 AWG | 14-24 AWG | 14-24 AWG |
| Wire Gauge or Range - mm² | 0.2-2mm² | 0.05-2mm² | 0.2-2mm² | 0.2-2mm² |
| Color | Green | Green | Green | Green |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 110°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Contact Mating Finish | Tin | Tin | Tin | Tin |
| Features | Retention Latches (Non-Wire Side) | Side Stacking | Retention Latches (Non-Wire Side) | Retention Latches (Non-Wire Side) |
