1-1971954-2
  • Share:

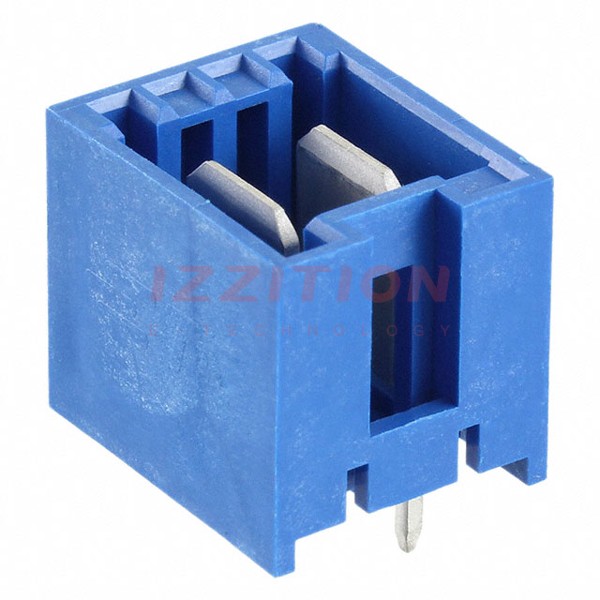

TE Connectivity AMP Connectors 1-1971954-2

Manufacturer No:
1-1971954-2
Manufacturer:
TE Connectivity AMP Connectors
Package:
Bulk
Datasheet:
1-1971954-2 Datasheet
ECAD Model:
-
Description:
CONN HEADER VERT 2POS 5MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Tab
Pitch - Mating:0.197" (5.00mm)
Number of Positions:2
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Latch Holder
Contact Length - Mating:-
Contact Length - Post:0.138" (3.50mm)
Overall Contact Length:-
Insulation Height:0.504" (12.80mm)
Contact Shape:Rectangular
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:-
Contact Finish - Post:Tin
Contact Material:Copper Alloy
Insulation Material:Polyamide (PA), Nylon
Features:Board Guide, Glow Wire Compliant
Operating Temperature:-40°C ~ 120°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Blue
Current Rating (Amps):-
Voltage Rating:250VAC
0 Remaining View Similar

In Stock

$0.41
2,029

Please send RFQ , we will respond immediately.
