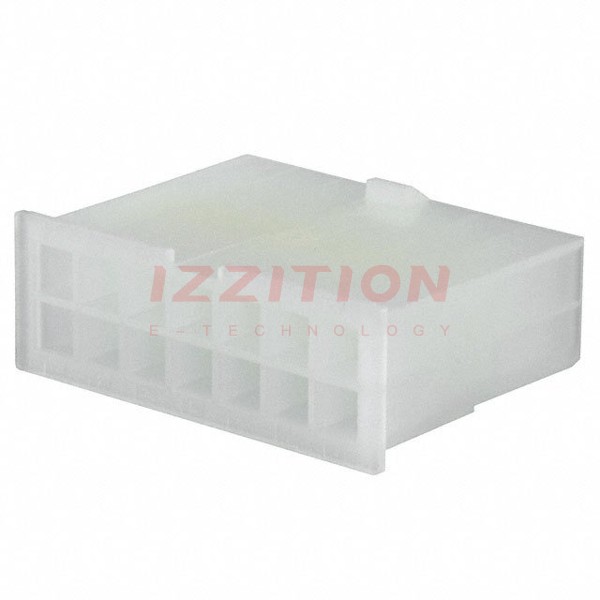

| Part Number | 1-1969598-4 | 1-1969599-4 | 1-1969598-8 | 1-1969598-6 | 1-1969588-4 | 1-1969590-4 | 1-1969591-4 | 1-1969592-4 | 1-1969593-4 | 1-1969594-4 | 1-1969595-4 | 1-1969597-4 | 1-1969598-0 | 1-1969598-2 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Connector Type | Plug | Plug | Plug | Plug | Receptacle | Plug | Receptacle | Receptacle | Receptacle | Receptacle | Receptacle | Receptacle | Plug | Plug |
| Contact Type | Male Pin | Male Pin | Male Pin | Male Pin | Male Pin | Male Pin | Male Pin | Male Pin | Male Pin | Male Pin | Male Pin | Female Socket | Male Pin | Male Pin |
| Number of Positions | 14 | 14 | 18 | 16 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 10 | 12 |
| Pitch | 0.165" (4.20mm) | 0.165" (4.20mm) | 0.165" (4.20mm) | 0.165" (4.20mm) | 0.098" (2.50mm) | 0.098" (2.50mm) | 0.098" (2.50mm) | 0.098" (2.50mm) | 0.098" (2.50mm) | 0.098" (2.50mm) | 0.098" (2.50mm) | 0.165" (4.20mm) | 0.165" (4.20mm) | 0.165" (4.20mm) |
| Number of Rows | 2 | 2 | 2 | 2 | 1 | 1 | 1 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Row Spacing | 0.165" (4.20mm) | 0.165" (4.20mm) | 0.165" (4.20mm) | 0.165" (4.20mm) | - | - | - | 0.098" (2.50mm) | 0.098" (2.50mm) | 0.098" (2.50mm) | 0.098" (2.50mm) | 0.165" (4.20mm) | 0.165" (4.20mm) | 0.165" (4.20mm) |
| Mounting Type | Free Hanging (In-Line) | Panel Mount | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Panel Mount, Snap-In | Panel Mount, Snap-In | Free Hanging (In-Line) | Free Hanging (In-Line) | Panel Mount, Snap-In | Panel Mount, Snap-In | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Contact Termination | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp |
| Fastening Type | Locking Ramp | Latch Holder | Locking Ramp | Locking Ramp | Locking Ramp | Latch Lock | Latch Holder | Latch Lock | Latch Holder | Latch Holder | Latch Holder | Latch Lock | Locking Ramp | Locking Ramp |
| Color | Natural | Natural | Natural | Natural | Natural | White | Natural | White | Natural | White | Natural | Natural | Natural | Natural |
| Features | - | Polarizing Key | - | - | - | - | Glow Wire Compliant | - | - | - | - | - | - | - |
