Please send RFQ , we will respond immediately.

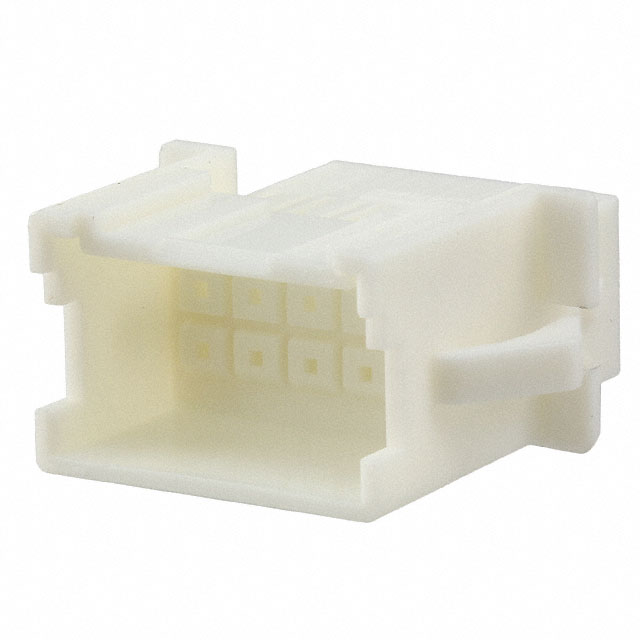

| Part Number | 1-1969594-0 | 1-1969597-0 | 1-1969599-0 | 1-1969598-0 | 1-1969595-0 | 1-1969594-4 | 1-1969594-2 | 1-1969594-6 | 1-1969594-8 | 1-1969590-0 | 1-1969591-0 | 1-1969592-0 | 1-1969593-0 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Connector Type | Receptacle | Receptacle | Plug | Plug | Receptacle | Receptacle | Receptacle | Receptacle | Receptacle | Plug | Receptacle | Receptacle | Receptacle |
| Contact Type | Male Pin | Female Socket | Male Pin | Male Pin | Male Pin | Male Pin | Male Pin | Male Pin | Male Pin | Male Pin | Male Pin | Male Pin | Male Pin |
| Number of Positions | 10 | 10 | 10 | 10 | 10 | 14 | 12 | 16 | 18 | 10 | 10 | 10 | 10 |
| Pitch | 0.098" (2.50mm) | 0.165" (4.20mm) | 0.165" (4.20mm) | 0.165" (4.20mm) | 0.098" (2.50mm) | 0.098" (2.50mm) | 0.098" (2.50mm) | 0.098" (2.50mm) | 0.098" (2.50mm) | 0.098" (2.50mm) | 0.098" (2.50mm) | 0.098" (2.50mm) | 0.098" (2.50mm) |
| Number of Rows | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 1 | 1 | 2 | 2 |
| Row Spacing | 0.098" (2.50mm) | 0.165" (4.20mm) | 0.165" (4.20mm) | 0.165" (4.20mm) | 0.098" (2.50mm) | 0.098" (2.50mm) | 0.098" (2.50mm) | 0.098" (2.50mm) | 0.098" (2.50mm) | - | - | 0.098" (2.50mm) | 0.098" (2.50mm) |
| Mounting Type | Panel Mount, Snap-In | Free Hanging (In-Line) | Panel Mount, Snap-In | Free Hanging (In-Line) | Panel Mount, Snap-In | Panel Mount, Snap-In | Panel Mount, Snap-In | Panel Mount, Snap-In | Panel Mount, Snap-In | Panel Mount, Snap-In | Panel Mount, Snap-In | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Contact Termination | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp |
| Fastening Type | Latch Holder | Latch Lock | Locking Ramp | Locking Ramp | Latch Holder | Latch Holder | Latch Holder | Latch Holder | Latch Holder | Latch Lock | Latch Holder | Latch Lock | Latch Holder |
| Color | White | Natural | Natural | Natural | Natural | White | White | White | White | White | Natural | White | Natural |
| Features | - | - | - | - | - | - | - | - | - | - | Glow Wire Compliant | - | - |
