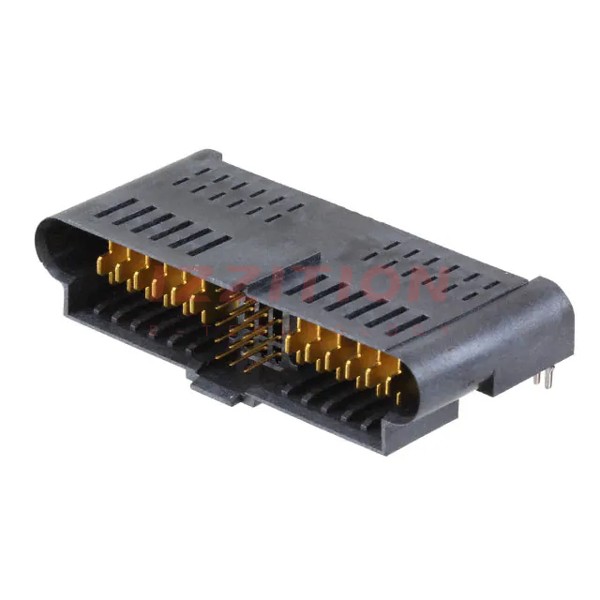

| Part Number | 1-1926720-6 | 1-1926721-6 | 1-1926710-6 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Obsolete |
| Connector Usage | - | - | - |
| Connector Type | Header, Male Pins and Blades | Receptacle, Female Sockets and Blade Sockets | Header, Male Blades |
| Connector Style | - | - | Power |
| Number of Positions | 27 | 27 | 16 |
| Number of Positions Loaded | All | All | All |
| Pitch | 0.079" (2.00mm) | 0.079" (2.00mm) | - |
| Number of Rows | - | 1 | 1 |
| Number of Columns | - | - | - |
| Mounting Type | Board Edge, Through Hole, Right Angle | Board Edge, Through Hole, Right Angle | Board Edge, Through Hole, Right Angle |
| Termination | Press-Fit | Press-Fit | Press-Fit |
| Contact Layout, Typical | 15 Signal, 12 Power | 15 Signal, 12 Power | 16 Power |
| Features | Board Lock, Mating Guide | Board Lock, Guide Pin | Board Lock, Mating Guide |
| Contact Finish | Gold or Gold-Palladium | Gold or Gold-Palladium | Gold or Gold-Palladium |
| Contact Finish Thickness | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) |
| Color | Black | Black | Black |
