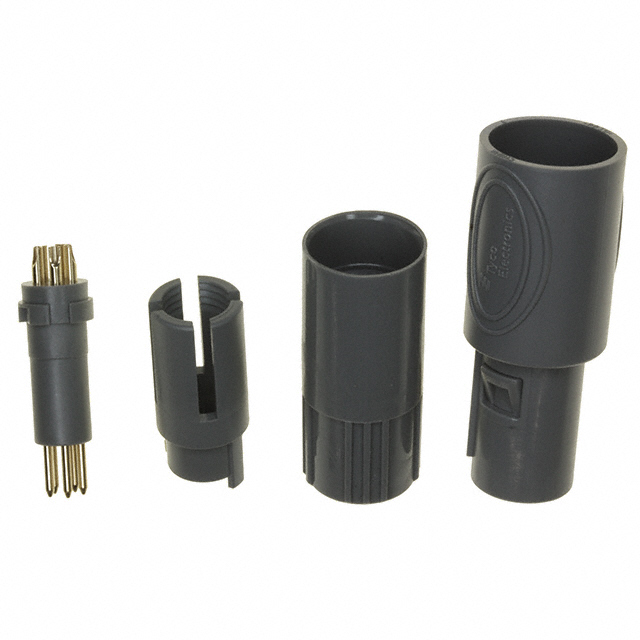

| Part Number | 1-1877845-0 | 1-1877845-1 | 1-1877845-2 | 1-1877846-0 | 1-1877847-0 | 1-1877848-0 |
|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active |
| Connector Type | Plug, Male Pins | Plug, Male Pins | Plug, Male Pins | Plug, Male Pins | Plug, Male Pins | Plug, Male Pins |
| Number of Positions | 5 | 5 | 5 | 6 | 7 | 10 |
| Shell Size - Insert | - | - | - | - | - | - |
| Shell Size, MIL | - | - | - | - | - | - |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Mounting Feature | - | - | - | - | - | - |
| Termination | Solder Cup | Solder Cup | Solder Cup | Solder Cup | Solder Cup | Solder Cup |
| Fastening Type | Latch Lock | Latch Lock | Latch Lock | Latch Lock | Latch Lock | Latch Lock |
| Orientation | 80° | 80° | 80° | 80° | 80° | 80° |
| Primary Material | Plastic | Plastic | Plastic | Plastic | Plastic | Plastic |
| Shell Material | Thermoplastic | Thermoplastic | Thermoplastic | Thermoplastic | Thermoplastic | Thermoplastic |
| Shell Finish | - | - | - | - | - | - |
| Contact Finish - Mating | Gold | Gold | Gold | Gold | Gold | Gold |
| Color | Gray | Gray | Gray | Gray | Gray | Gray |
| Ingress Protection | - | - | - | - | - | - |
| Material Flammability Rating | - | - | - | - | - | - |
| Features | - | - | - | - | - | - |
| Shielding | - | - | - | - | - | - |
| Current Rating (Amps) | 7A | 7A | 7A | 6A | 5A | 3A |
| Voltage Rating | 300VAC | 300VAC | 300VAC | 300VAC | 300VAC | 300VAC |
| Cable Opening | 0.209" ~ 0.256" (5.30mm ~ 6.50mm) | 0.157" ~ 0.205" (4.00mm ~ 5.20mm) | 0.106" ~ 0.154" (2.70mm ~ 3.90mm) | 0.209" ~ 0.256" (5.30mm ~ 6.50mm) | 0.209" ~ 0.256" (5.30mm ~ 6.50mm) | 0.209" ~ 0.256" (5.30mm ~ 6.50mm) |
| Operating Temperature | -50°C ~ 170°C | -50°C ~ 170°C | -50°C ~ 170°C | -50°C ~ 170°C | -50°C ~ 170°C | -50°C ~ 170°C |
