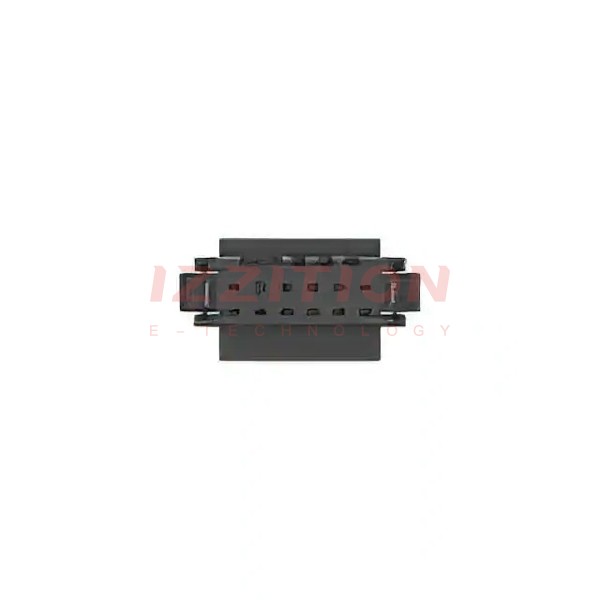

| Part Number | 1-1871940-6 | 1-1871940-8 | 1-1871940-4 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active |
| Connector Type | Receptacle | Receptacle | Receptacle |
| Contact Type | Female Socket | Female Socket | Female Socket |
| Number of Positions | 12 | 16 | 8 |
| Pitch | 0.138" (3.50mm) | 0.138" (3.50mm) | 0.138" (3.50mm) |
| Number of Rows | 2 | 2 | 2 |
| Row Spacing | 0.130" (3.30mm) | 0.130" (3.30mm) | 0.130" (3.30mm) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Fastening Type | Locking Ramp | Locking Ramp | Locking Ramp |
| Cable Termination | Spring Clamp | Spring Clamp | Spring Clamp |
| Wire Type | Discrete | Discrete | Discrete |
| Wire Gauge | - | - | - |
| Features | - | - | - |
| Contact Finish | Gold | Gold | Gold |
| Contact Finish Thickness | 11.8µin (0.30µm) | 11.8µin (0.30µm) | 11.8µin (0.30µm) |
| Color | Black | Black | Black |
