1-1871315-2
  • Share:

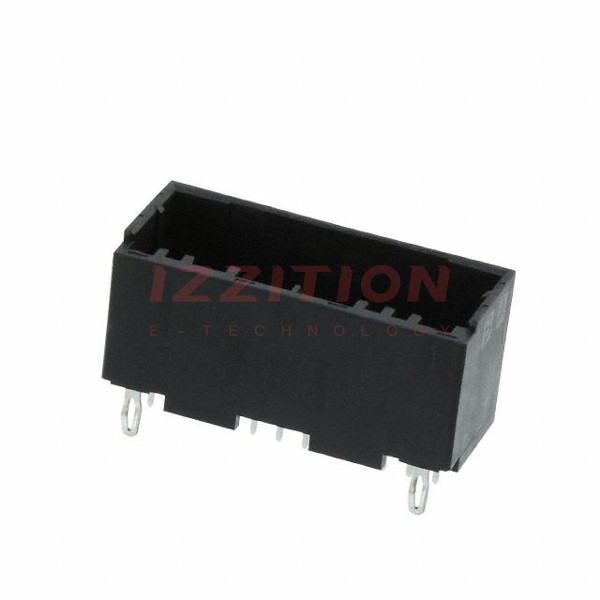

TE Connectivity AMP Connectors 1-1871315-2

Manufacturer No:
1-1871315-2
Manufacturer:
TE Connectivity AMP Connectors
Package:
Tube
Datasheet:
1-1871315-2 Datasheet
ECAD Model:
-
Description:
CONN HEADER VERT 24POS 2MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.079" (2.00mm)
Number of Positions:24
Number of Rows:2
Row Spacing - Mating:0.130" (3.30mm)
Number of Positions Loaded:All
Style:Board to Board or Cable
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Detent Lock
Contact Length - Mating:-
Contact Length - Post:0.120" (3.05mm)
Overall Contact Length:-
Insulation Height:0.490" (12.44mm)
Contact Shape:Square
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:-
Contact Finish - Post:Tin
Contact Material:Copper Alloy
Insulation Material:Thermoplastic, Polyester, Glass Filled
Features:Board Lock
Operating Temperature:-55°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):3A
Voltage Rating:125V
0 Remaining View Similar

In Stock

$2.97
235

Please send RFQ , we will respond immediately.
