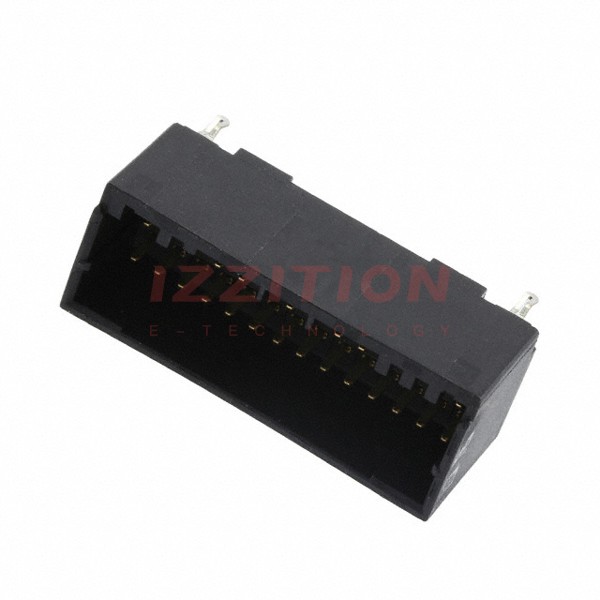

TE Connectivity AMP Connectors 1-1827872-4

Manufacturer No:
1-1827872-4
Manufacturer:
TE Connectivity AMP Connectors
Package:
Tube
Datasheet:
1-1827872-4 Datasheet
ECAD Model:
-
Description:
CONN HEADER VERT 28POS 2MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.079" (2.00mm)
Number of Positions:28
Number of Rows:2
Row Spacing - Mating:0.130" (3.30mm)
Number of Positions Loaded:All
Style:Board to Board or Cable
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Detent Lock
Contact Length - Mating:-
Contact Length - Post:0.120" (3.05mm)
Overall Contact Length:-
Insulation Height:0.490" (12.44mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:15.0µin (0.38µm)
Contact Finish - Post:Tin
Contact Material:Copper Alloy
Insulation Material:Thermoplastic, Polyester, Glass Filled
Features:Board Lock
Operating Temperature:-55°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):3A
Voltage Rating:125V
0 Remaining View Similar

In Stock

$6.61
14

Please send RFQ , we will respond immediately.

Similar Products

Part Number 1-1827872-4 1-1827876-4   1-1827875-4   1-1827872-5   1-1827872-6   1-1827872-7   1-1827872-0   1-1827872-1   1-1827872-3
Manufacturer TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors
Product Status Active Active Active Active Active Active Active Active Active
Connector Type Header Header Header Header Header Header Header Header Header
Contact Type Male Pin Male Pin Male Pin Male Pin Male Pin Male Pin Male Pin Male Pin Male Pin
Pitch - Mating 0.079" (2.00mm) 0.098" (2.50mm) 0.098" (2.50mm) 0.079" (2.00mm) 0.079" (2.00mm) 0.079" (2.00mm) 0.079" (2.00mm) 0.079" (2.00mm) 0.079" (2.00mm)
Number of Positions 28 8 8 30 32 34 40 22 26
Number of Rows 2 2 2 2 2 2 2 2 2
Row Spacing - Mating 0.130" (3.30mm) 0.130" (3.30mm) 0.130" (3.30mm) 0.130" (3.30mm) 0.130" (3.30mm) 0.130" (3.30mm) 0.130" (3.30mm) 0.130" (3.30mm) 0.130" (3.30mm)
Number of Positions Loaded All All All All All All All All All
Style Board to Board or Cable Board to Board or Cable Board to Board or Cable Board to Board or Cable Board to Board or Cable Board to Board or Cable Board to Board or Cable Board to Board or Cable Board to Board or Cable
Shrouding Shrouded - 4 Wall Shrouded - 4 Wall Shrouded - 4 Wall Shrouded - 4 Wall Shrouded - 4 Wall Shrouded - 4 Wall Shrouded - 4 Wall Shrouded - 4 Wall Shrouded - 4 Wall
Mounting Type Through Hole Through Hole, Right Angle Through Hole Through Hole Through Hole Through Hole Through Hole Through Hole Through Hole
Termination Solder Solder Solder Solder Solder Solder Solder Solder Solder
Fastening Type Detent Lock Detent Lock Detent Lock Detent Lock Detent Lock Detent Lock Detent Lock Detent Lock Detent Lock
Contact Length - Mating - - - - - - - - -
Contact Length - Post 0.120" (3.05mm) 0.122" (3.10mm) 0.120" (3.05mm) 0.120" (3.05mm) 0.120" (3.05mm) 0.120" (3.05mm) 0.120" (3.05mm) 0.120" (3.05mm) 0.120" (3.05mm)
Overall Contact Length - - - - - - - - -
Insulation Height 0.490" (12.44mm) 0.465" (11.80mm) 0.490" (12.44mm) 0.490" (12.44mm) 0.490" (12.44mm) 0.490" (12.44mm) 0.490" (12.44mm) 0.490" (12.44mm) 0.490" (12.44mm)
Contact Shape Square Square Square Square Square Square Square Square Square
Contact Finish - Mating Gold Gold Gold Gold Gold Gold Gold Gold Gold
Contact Finish Thickness - Mating 15.0µin (0.38µm) 15.0µin (0.38µm) 15.0µin (0.38µm) 15.0µin (0.38µm) 15.0µin (0.38µm) 15.0µin (0.38µm) 15.0µin (0.38µm) 15.0µin (0.38µm) 15.0µin (0.38µm)
Contact Finish - Post Tin Tin Tin Tin Tin Tin Tin Tin Tin
Contact Material Copper Alloy Copper Alloy Copper Alloy Copper Alloy Copper Alloy Copper Alloy Copper Alloy Copper Alloy Copper Alloy
Insulation Material Thermoplastic, Polyester, Glass Filled Thermoplastic, Polyester, Glass Filled Thermoplastic, Polyester, Glass Filled Thermoplastic, Polyester, Glass Filled Thermoplastic, Polyester, Glass Filled Thermoplastic, Polyester, Glass Filled Thermoplastic, Polyester, Glass Filled Thermoplastic, Polyester, Glass Filled Thermoplastic, Polyester, Glass Filled
Features Board Lock Board Lock Board Lock Board Lock Board Lock Board Lock Board Lock Board Lock Board Lock
Operating Temperature -55°C ~ 105°C -55°C ~ 105°C -55°C ~ 105°C -55°C ~ 105°C -55°C ~ 105°C -55°C ~ 105°C -55°C ~ 105°C -55°C ~ 105°C -55°C ~ 105°C
Ingress Protection - - - - - - - - -
Material Flammability Rating UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0
Insulation Color Black Black Black Black Black Black Black Black Black
Current Rating (Amps) 3A 5A 5A 3A 3A 3A 3A 3A 3A
Voltage Rating 125V 250V 250V 125V 125V 125V 125V 125V 125V
