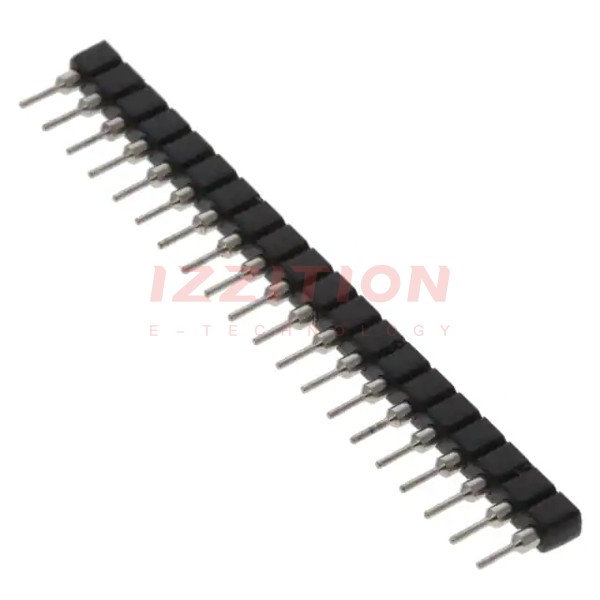

| Part Number | 1-1814655-5 | 1-1814655-1 |
|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active |
| Type | SIP | SIP |
| Number of Positions or Pins (Grid) | 20 (1 x 20) | 16 (1 x 16) |
| Pitch - Mating | 0.100" (2.54mm) | 0.100" (2.54mm) |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish Thickness - Mating | Flash | Flash |
| Contact Material - Mating | Beryllium Copper | Beryllium Copper |
| Mounting Type | Through Hole | Through Hole |
| Features | Closed Frame | Closed Frame |
| Termination | Solder | Solder |
| Pitch - Post | 0.100" (2.54mm) | 0.100" (2.54mm) |
| Contact Finish - Post | Tin | Tin |
| Contact Finish Thickness - Post | 196.9µin (5.00µm) | 196.9µin (5.00µm) |
| Contact Material - Post | Brass | Brass |
| Housing Material | Thermoplastic, Polyester | Thermoplastic, Polyester |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C |
