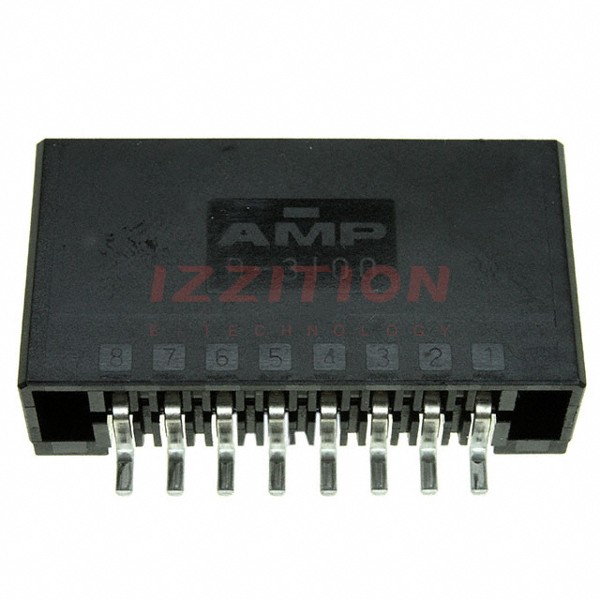

| Part Number | 1-179188-3 | 1-179188-2 |
|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active |
| Connector Type | Header | Header |
| Contact Type | Tab | Tab |
| Pitch - Mating | 0.150" (3.81mm) | 0.150" (3.81mm) |
| Number of Positions | 8 | 8 |
| Number of Rows | 1 | 1 |
| Row Spacing - Mating | - | - |
| Number of Positions Loaded | All | All |
| Style | Board to Board or Cable | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall | Shrouded - 4 Wall |
| Mounting Type | Surface Mount, Right Angle | Surface Mount, Right Angle |
| Termination | Solder | Solder |
| Fastening Type | Detent Lock | Detent Lock |
| Contact Length - Mating | - | - |
| Contact Length - Post | - | - |
| Overall Contact Length | - | - |
| Insulation Height | 0.455" (11.56mm) | 0.455" (11.56mm) |
| Contact Shape | Rectangular | Rectangular |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) | 15.0µin (0.38µm) |
| Contact Finish - Post | Tin | Tin |
| Contact Material | Copper Alloy | Copper Alloy |
| Insulation Material | Thermoplastic, Polyester, Glass Filled | Thermoplastic, Polyester, Glass Filled |
| Features | Solder Retention | Solder Retention |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C |
| Ingress Protection | - | - |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Insulation Color | Black | Black |
| Current Rating (Amps) | - | - |
| Voltage Rating | 250V | 250V |
