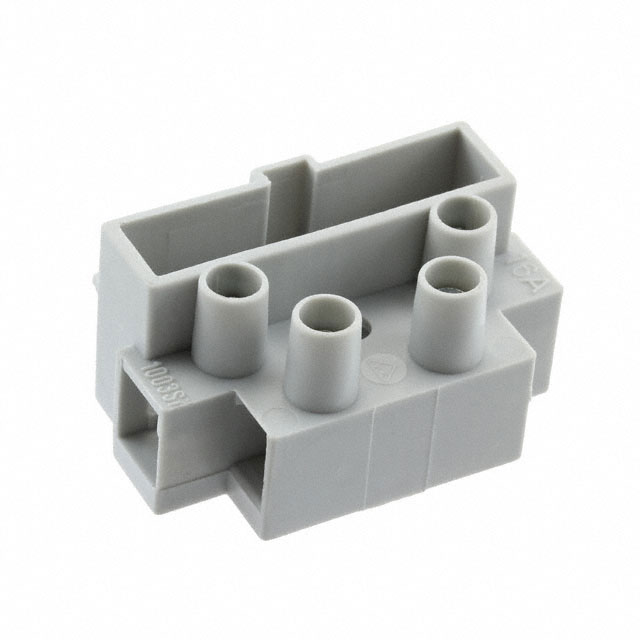

| Part Number | 1-1776309-2 | 1-1776300-2 | 1-1776302-2 | 1-1776304-2 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Obsolete | Active | Active |
| Terminal Block Type | Eurostyle Terminal Strip | Eurostyle Terminal Strip | Eurostyle Terminal Strip | Eurostyle Terminal Strip |
| Number of Circuits | 2 | 12 | 12 | 12 |
| Number of Wire Entries | 2 | 24 | 24 | 24 |
| Pitch | - | 0.394" (10.00mm) | 0.472" (12.00mm) | 0.472" (12.00mm) |
| Number of Rows | 2 | 2 | 2 | 2 |
| Current Rating (Amps) | 34A | 30A | 40A | 40A |
| Voltage Rating | 400V | 600V | 250V | 250V |
| Wire Gauge | 10-24 AWG | 12-24 AWG | 10-22 AWG | 10-24 AWG |
| Top Termination | Screws | Screws | Screws | Screws |
| Bottom Termination | Closed | Closed | Closed | Closed |
| Barrier Type | Enclosed | Enclosed | Enclosed | Enclosed |
| Features | Board Guide | - | - | - |
| Color | Gray | Natural | Natural | Brown |
