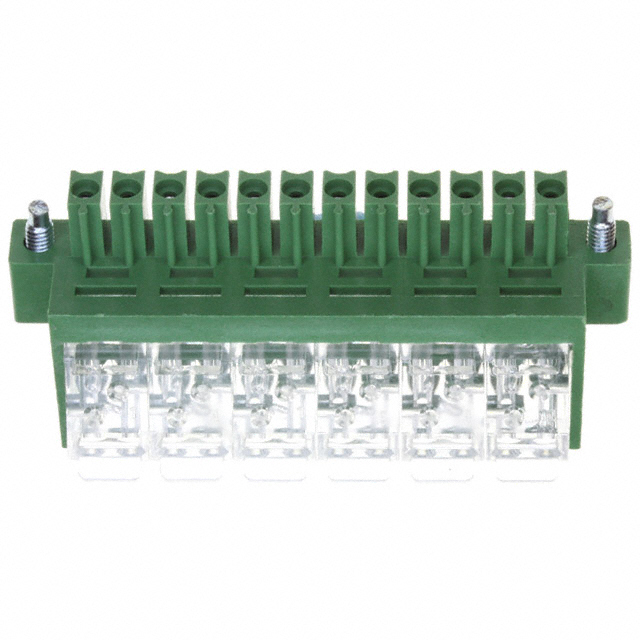

| Part Number | 1-1776283-2 | 1-1776263-2 | 1-1776282-2 | 1-1776283-0 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Active | Obsolete | Obsolete |
| Type | Plug, Female Sockets | Plug for Unshrouded Header | Plug, Female Sockets | Plug, Female Sockets |
| Number of Positions | 12 | 12 | 12 | 10 |
| Positions Per Level | 12 | 12 | 12 | 10 |
| Number of Levels | 1 | 1 | 1 | 1 |
| Pitch | 0.138" (3.50mm) | 0.197" (5.00mm) | 0.138" (3.50mm) | 0.138" (3.50mm) |
| Header Orientation | - | - | - | - |
| Plug Wire Entry | 180° | 90° | 180° | 180° |
| Termination Style | IDC | Screw - Leaf Spring, Wire Guard | IDC | IDC |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Current - IEC | - | - | - | - |
| Voltage - IEC | - | - | - | - |
| Current - UL | 5 A | 10 A | 5 A | 5 A |
| Voltage - UL | 250 V | 300 V | 250 V | 250 V |
| Wire Gauge or Range - AWG | 22-24 AWG | 16-24 AWG | 22-24 AWG | 22-24 AWG |
| Wire Gauge or Range - mm² | 0.2-0.4mm² | 0.2-1.4mm² | 0.2-0.4mm² | 0.2-0.4mm² |
| Color | Green | Blue | Green | Green |
| Operating Temperature | -40°C ~ 80°C | -40°C ~ 105°C | -40°C ~ 80°C | -40°C ~ 80°C |
| Contact Mating Finish | Tin | Tin | Tin | Tin |
| Features | Mating Flange | Interlocking (Side) | - | Mating Flange |
