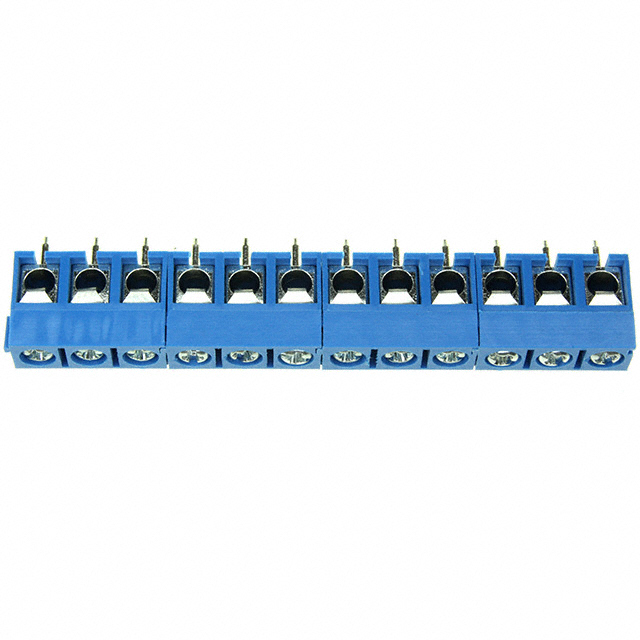

| Part Number | 1-1776244-2 | 1-1776244-0 |
|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active |
| Number of Levels | 1 | 1 |
| Positions Per Level | 12 | 10 |
| Pitch | 0.197" (5.00mm) | 0.197" (5.00mm) |
| Mating Orientation | Horizontal with Board | Horizontal with Board |
| Current | 10 A | 10 A |
| Voltage | 300 V | 300 V |
| Wire Gauge | 14-22 AWG | 14-22 AWG |
| Mounting Type | Through Hole | Through Hole |
| Wire Termination | Screw - Leaf Spring, Wire Guard | Screw - Leaf Spring, Wire Guard |
| Features | Interlocking (Side) | Interlocking (Side) |
| Color | Blue | Blue |
