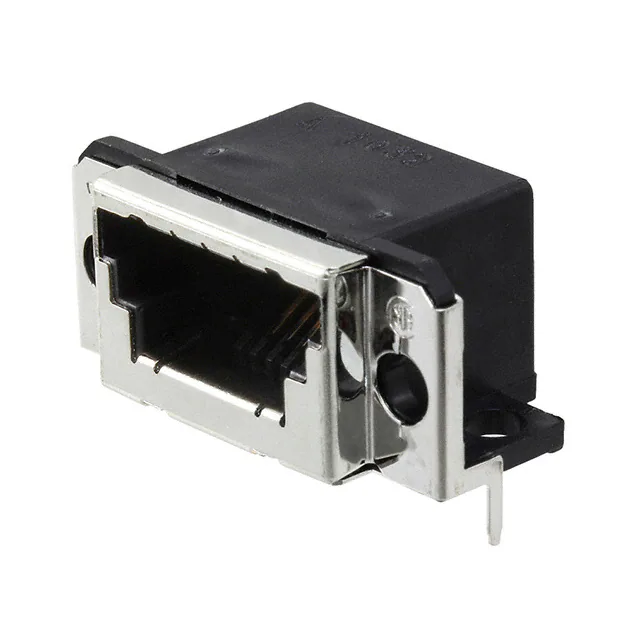

| Part Number | 1-1761185-2 | 1-1761185-3 | 1-1761185-1 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active |
| Connector Type | SDL, Jack | SDL, Jack | SDL, Jack |
| Number of Positions/Contacts | 6 Positions | 8 Positions | 4 Positions |
| Number of Ports | 1 | 1 | 1 |
| Number of Rows | 1 | 1 | 1 |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Orientation | 90° Angle (Right) | 90° Angle (Right) | 90° Angle (Right) |
| Termination | Solder | Solder | Solder |
| Shielding | Shielded | Shielded | Shielded |
| Ratings | - | - | - |
| Features | Board Guide, Keyed | Board Guide, Keyed | Board Guide, Keyed |
| LED Color | Does Not Contain LED | Does Not Contain LED | Does Not Contain LED |
| Ingress Protection | - | - | - |
| Tab Direction | - | - | - |
| Contact Material | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze |
| Contact Finish | Gold | Gold | Gold |
