1-1747994-1
  • Share:

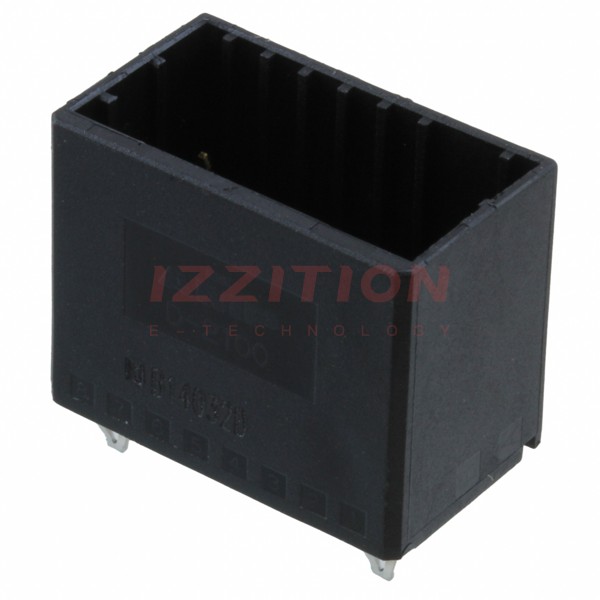

TE Connectivity AMP Connectors 1-1747994-1

Manufacturer No:
1-1747994-1
Manufacturer:
TE Connectivity AMP Connectors
Package:
Tube
Datasheet:
1-1747994-1 Datasheet
ECAD Model:
-
Description:
CONN HEADER VERT 16POS 2.5MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Tab
Pitch - Mating:0.098" (2.50mm)
Number of Positions:16
Number of Rows:2
Row Spacing - Mating:0.148" (3.75mm)
Number of Positions Loaded:All
Style:Board to Board or Cable
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Detent Lock
Contact Length - Mating:-
Contact Length - Post:0.134" (3.40mm)
Overall Contact Length:-
Insulation Height:0.700" (17.78mm)
Contact Shape:Rectangular
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:15.0µin (0.38µm)
Contact Finish - Post:Tin
Contact Material:Copper Alloy
Insulation Material:Thermoplastic, Polyester, Glass Filled
Features:Board Lock
Operating Temperature:-55°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):5A
Voltage Rating:250V
0 Remaining View Similar

In Stock

$3.95
97

Please send RFQ , we will respond immediately.
