1-1744048-0
  • Share:

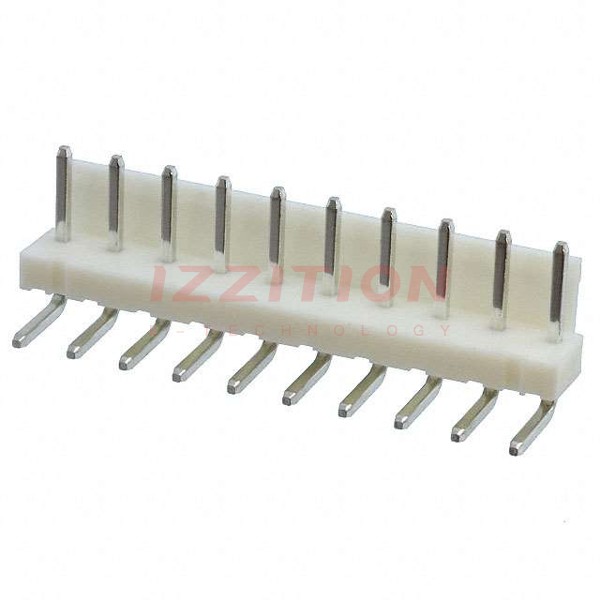

TE Connectivity AMP Connectors 1-1744048-0

Manufacturer No:
1-1744048-0
Manufacturer:
TE Connectivity AMP Connectors
Package:
Bulk
Datasheet:
1-1744048-0 Datasheet
ECAD Model:
-
Description:
CONN HEADER R/A 10POS 5.08MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.200" (5.08mm)
Number of Positions:10
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 1 Wall
Mounting Type:Through Hole, Right Angle
Termination:Solder
Fastening Type:Friction Lock
Contact Length - Mating:0.338" (8.59mm)
Contact Length - Post:0.142" (3.60mm)
Overall Contact Length:-
Insulation Height:0.335" (8.51mm)
Contact Shape:Square
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:80.0µin (2.03µm)
Contact Finish - Post:Tin
Contact Material:Copper Alloy
Insulation Material:Polyamide (PA66), Nylon 6/6
Features:-
Operating Temperature:-25°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Natural
Current Rating (Amps):7.5A
Voltage Rating:250VAC
0 Remaining View Similar

In Stock

$1.40
168

Please send RFQ , we will respond immediately.
