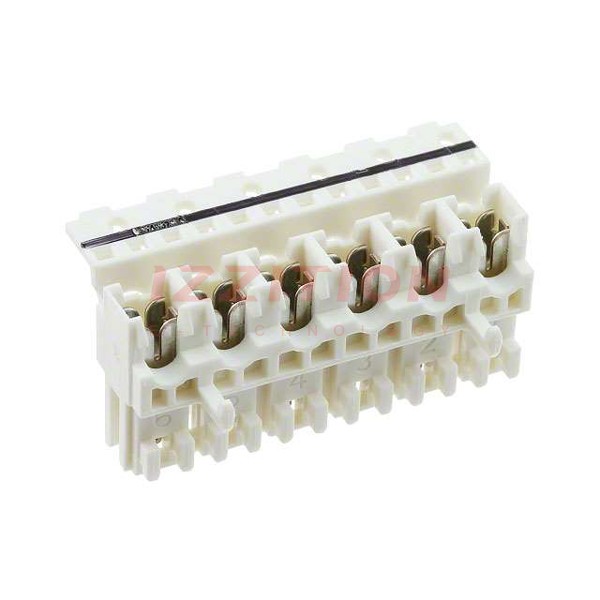

| Part Number | 1-1740533-6 | 1-1740533-7 | 1-1740533-9 | 1-1740533-2 | 1-1740533-3 | 1-1740533-4 |
|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active |
| Connector Type | Receptacle | Receptacle | Receptacle | Receptacle | Receptacle | Receptacle |
| Contact Type | Female Blade Socket | Female Blade Socket | Female Blade Socket | Female Blade Socket | Female Blade Socket | Female Blade Socket |
| Number of Positions | 6 | 7 | 9 | 2 | 3 | 4 |
| Pitch | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) | 0.197" (5.00mm) |
| Number of Rows | 1 | 1 | 1 | 1 | 1 | 1 |
| Row Spacing | - | - | - | - | - | - |
| Mounting Type | Free Hanging (In-Line), Right Angle | Free Hanging (In-Line), Right Angle | Free Hanging (In-Line), Right Angle | Free Hanging (In-Line), Right Angle | Free Hanging (In-Line), Right Angle | Free Hanging (In-Line), Right Angle |
| Fastening Type | Locking Ramp | Locking Ramp | Locking Ramp | Locking Ramp | Locking Ramp | Locking Ramp |
| Cable Termination | IDC | IDC | IDC | IDC | IDC | IDC |
| Wire Type | Discrete | Discrete | Discrete | Discrete | Discrete | Discrete |
| Wire Gauge | - | - | - | - | - | - |
| Features | Mates to PCB | Mates to PCB | Mates to PCB | Mates to PCB | Mates to PCB | Mates to PCB |
| Contact Finish | Tin | Tin | Tin | Tin | Tin | Tin |
| Contact Finish Thickness | - | - | - | - | - | - |
| Color | Natural | Natural | Natural | Natural | Natural | Natural |
