Please send RFQ , we will respond immediately.

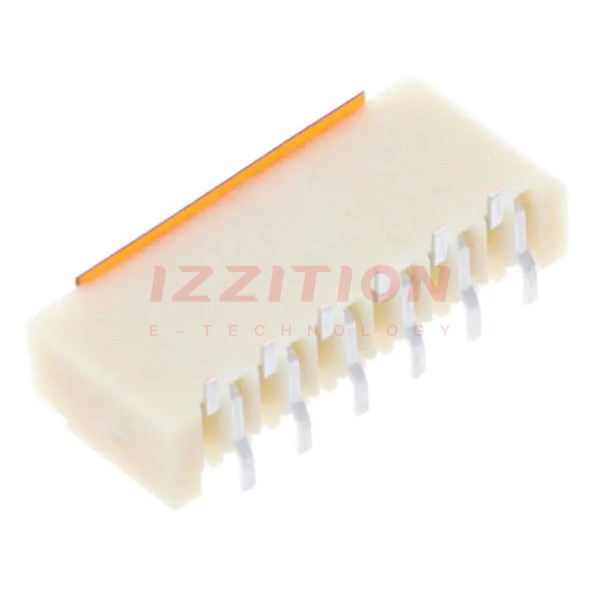

| Part Number | 1-1735042-2 | 1-1735042-8 | 1-1735042-0 | 1-1735042-1 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active |
| Flat Flex Type | FFC, FPC | FFC, FPC | FFC, FPC | FFC, FPC |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Connector/Contact Type | Contacts, Vertical - 1 Sided | Contacts, Vertical - 1 Sided | Contacts, Vertical - 1 Sided | Contacts, Vertical - 1 Sided |
| Number of Positions | 12 | 18 | 10 | 11 |
| Pitch | 0.039" (1.00mm) | 0.039" (1.00mm) | 0.039" (1.00mm) | 0.039" (1.00mm) |
| Termination | Solder | Solder | Solder | Solder |
| FFC, FCB Thickness | 0.30mm | 0.30mm | 0.30mm | 0.30mm |
| Height Above Board | 0.220" (5.59mm) | 0.220" (5.59mm) | 0.220" (5.59mm) | 0.220" (5.59mm) |
| Locking Feature | - | - | - | - |
| Cable End Type | Straight | Straight | Straight | Straight |
| Contact Material | Phosphorus Bronze | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze |
| Contact Finish | Tin | Tin | Tin | Tin |
| Housing Material | Polyamide (PA), Nylon, Glass Filled | Polyamide (PA), Nylon | Polyamide (PA), Nylon, Glass Filled | Polyamide (PA), Nylon, Glass Filled |
| Actuator Material | - | - | - | - |
| Features | - | - | - | - |
| Voltage Rating | 125V | 125V | 125V | 125V |
| Operating Temperature | -20°C ~ 85°C | -20°C ~ 85°C | -20°C ~ 85°C | -20°C ~ 85°C |
| Material Flammability Rating | - | - | - | - |
