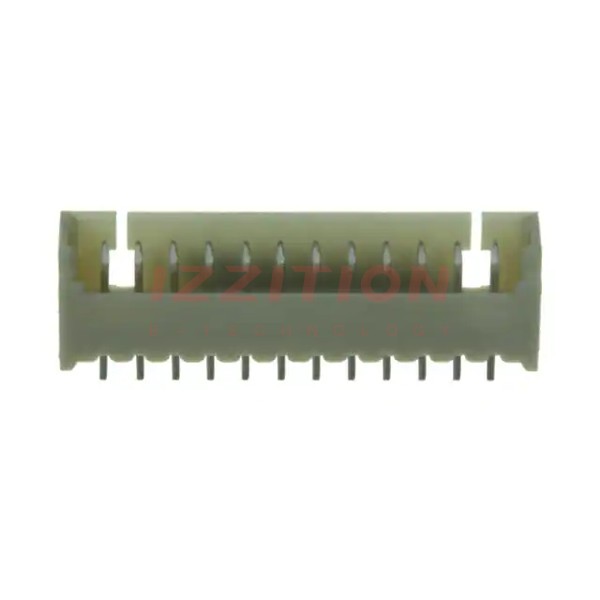

| Part Number | 1-1734598-2 | 1-1734598-5 | 1-1734598-3 | 1-1734598-4 | 1-1734595-2 | 1-1734598-0 | 1-1734598-1 |
|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Connector Type | Header | Header | Header | Header | Header | Header | Header |
| Contact Type | Male Pin | Male Pin | Male Pin | Male Pin | Male Pin | Male Pin | Male Pin |
| Pitch - Mating | 0.049" (1.25mm) | 0.049" (1.25mm) | 0.049" (1.25mm) | 0.049" (1.25mm) | 0.039" (1.00mm) | 0.049" (1.25mm) | 0.049" (1.25mm) |
| Number of Positions | 12 | 15 | 13 | 14 | 12 | 10 | 11 |
| Number of Rows | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Row Spacing - Mating | - | - | - | - | - | - | - |
| Number of Positions Loaded | All | All | All | All | All | All | All |
| Style | Board to Cable/Wire | Board to Cable/Wire | Board to Cable/Wire | Board to Cable/Wire | Board to Cable/Wire | Board to Cable/Wire | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Shrouded - 4 Wall | Shrouded - 4 Wall | Shrouded - 4 Wall | Shrouded - 4 Wall | Shrouded - 4 Wall | Shrouded - 4 Wall |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Surface Mount | Through Hole | Through Hole |
| Termination | Solder | Solder | Solder | Solder | Solder | Solder | Solder |
| Fastening Type | - | - | - | - | - | - | - |
| Contact Length - Mating | - | - | - | - | - | - | - |
| Contact Length - Post | 0.067" (1.70mm) | 0.067" (1.70mm) | 0.067" (1.70mm) | 0.067" (1.70mm) | - | 0.067" (1.70mm) | 0.067" (1.70mm) |
| Overall Contact Length | - | - | - | - | - | - | - |
| Insulation Height | 0.185" (4.70mm) | 0.185" (4.70mm) | 0.185" (4.70mm) | 0.185" (4.70mm) | 0.169" (4.30mm) | 0.185" (4.70mm) | 0.185" (4.70mm) |
| Contact Shape | Square | Square | Square | Square | Square | Square | Square |
| Contact Finish - Mating | Tin | Tin | Tin | Tin | Tin | Tin | Tin |
| Contact Finish Thickness - Mating | 120.0µin (3.05µm) | 120.0µin (3.05µm) | 120.0µin (3.05µm) | 120.0µin (3.05µm) | 120.0µin (3.05µm) | 120.0µin (3.05µm) | 120.0µin (3.05µm) |
| Contact Finish - Post | Tin | Tin | Tin | Tin | Tin | Tin | Tin |
| Contact Material | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze |
| Insulation Material | Polyamide (PA9T), Nylon 9T, Glass Filled | Polyamide (PA9T), Nylon 9T, Glass Filled | Polyamide (PA9T), Nylon 9T, Glass Filled | Polyamide (PA9T), Nylon 9T, Glass Filled | Polyamide (PA9T), Nylon 9T | Polyamide (PA9T), Nylon 9T, Glass Filled | Polyamide (PA9T), Nylon 9T, Glass Filled |
| Features | - | - | - | - | Pick and Place, Solder Retention | - | - |
| Operating Temperature | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C | -55°C ~ 105°C | -25°C ~ 85°C | -25°C ~ 85°C |
| Ingress Protection | - | - | - | - | - | - | - |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 |
| Insulation Color | Natural | Natural | Natural | Natural | Ivory | Natural | Natural |
| Current Rating (Amps) | 1A | 1A | 1A | 1A | 1A | 1A | 1A |
| Voltage Rating | 100VAC | 100VAC | 100VAC | 100VAC | 50V | 100VAC | 100VAC |
