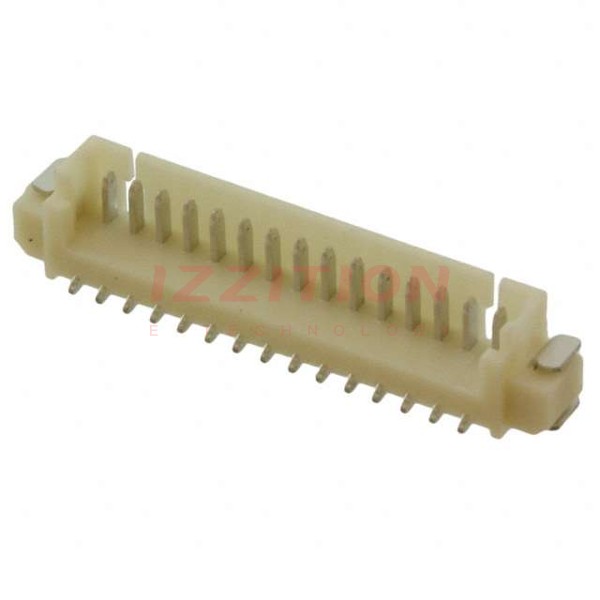

| Part Number | 1-1734260-5 | 1-1734261-5 | 1-1734260-0 | 1-1734260-1 | 1-1734260-2 | 1-1734260-3 | 1-1734260-4 |
|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Connector Type | Header | Header | Header | Header | Header | Header | Header |
| Contact Type | Male Pin | Male Pin | Male Pin | Male Pin | Male Pin | Male Pin | Male Pin |
| Pitch - Mating | 0.049" (1.25mm) | 0.049" (1.25mm) | 0.049" (1.25mm) | 0.049" (1.25mm) | 0.049" (1.25mm) | 0.049" (1.25mm) | 0.049" (1.25mm) |
| Number of Positions | 15 | 15 | 10 | 11 | 12 | 13 | 14 |
| Number of Rows | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Row Spacing - Mating | - | - | - | - | - | - | - |
| Number of Positions Loaded | All | All | All | All | All | All | All |
| Style | Board to Cable/Wire | Board to Cable/Wire | Board to Cable/Wire | Board to Cable/Wire | Board to Cable/Wire | Board to Cable/Wire | Board to Cable/Wire |
| Shrouding | Shrouded - 3 Wall | Shrouded - 4 Wall | Shrouded - 3 Wall | Shrouded - 3 Wall | Shrouded - 3 Wall | Shrouded - 3 Wall | Shrouded - 3 Wall |
| Mounting Type | Surface Mount | Surface Mount, Right Angle | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Termination | Solder | Solder | Solder | Solder | Solder | Solder | Solder |
| Fastening Type | - | - | - | - | - | - | - |
| Contact Length - Mating | - | - | - | - | - | - | - |
| Contact Length - Post | - | - | - | - | - | - | - |
| Overall Contact Length | - | - | - | - | - | - | - |
| Insulation Height | 0.187" (4.75mm) | 0.136" (3.46mm) | 0.187" (4.75mm) | 0.187" (4.75mm) | 0.187" (4.75mm) | 0.187" (4.75mm) | 0.187" (4.75mm) |
| Contact Shape | Square | Rectangular | Square | Square | Square | Square | Square |
| Contact Finish - Mating | Tin | Tin | Tin | Tin | Tin | Tin | Tin |
| Contact Finish Thickness - Mating | 150.0µin (3.81µm) | 100.0µin (2.54µm) | 150.0µin (3.81µm) | 150.0µin (3.81µm) | 150.0µin (3.81µm) | 150.0µin (3.81µm) | 150.0µin (3.81µm) |
| Contact Finish - Post | Tin | Tin | Tin | Tin | Tin | Tin | Tin |
| Contact Material | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze |
| Insulation Material | Thermoplastic | Thermoplastic | Thermoplastic | Thermoplastic | Thermoplastic | Thermoplastic | Thermoplastic |
| Features | Solder Retention | Solder Retention | Solder Retention | Solder Retention | Solder Retention | Solder Retention | Solder Retention |
| Operating Temperature | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C | -25°C ~ 85°C |
| Ingress Protection | - | - | - | - | - | - | - |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 |
| Insulation Color | Natural | Natural | Natural | Natural | Natural | Natural | Natural |
| Current Rating (Amps) | 1A | 1A | 1A | 1A | 1A | 1A | 1A |
| Voltage Rating | 125V | 100VAC | 125V | 125V | 125V | 125V | 125V |
