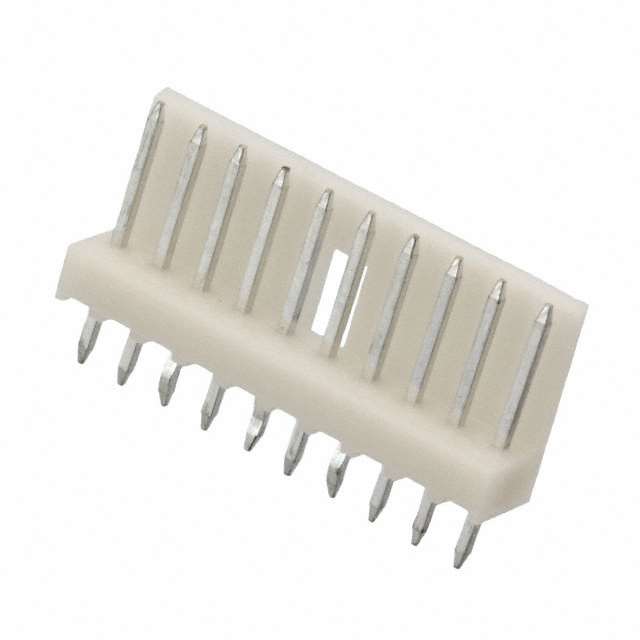

TE Connectivity AMP Connectors 1-172732-0

Manufacturer No:
1-172732-0
Manufacturer:
TE Connectivity AMP Connectors
Package:
Bulk
Datasheet:
1-172732-0 Datasheet
ECAD Model:
-
Description:
CONN HEADER VERT 10POS 2.5MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.098" (2.50mm)
Number of Positions:10
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 1 Wall
Mounting Type:Through Hole
Termination:Kinked Pin, Solder
Fastening Type:Latch Holder
Contact Length - Mating:0.295" (7.49mm)
Contact Length - Post:0.142" (3.60mm)
Overall Contact Length:0.551" (14.00mm)
Insulation Height:0.409" (10.40mm)
Contact Shape:Square
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:-
Contact Finish - Post:Tin
Contact Material:Brass
Insulation Material:Polyamide (PA66), Nylon 6/6
Features:-
Operating Temperature:-20°C ~ 95°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Natural
Current Rating (Amps):Varies by Wire Gauge
Voltage Rating:250VAC, 350VDC
0 Remaining View Similar

In Stock

$1.15
64

Please send RFQ , we will respond immediately.
