Please send RFQ , we will respond immediately.

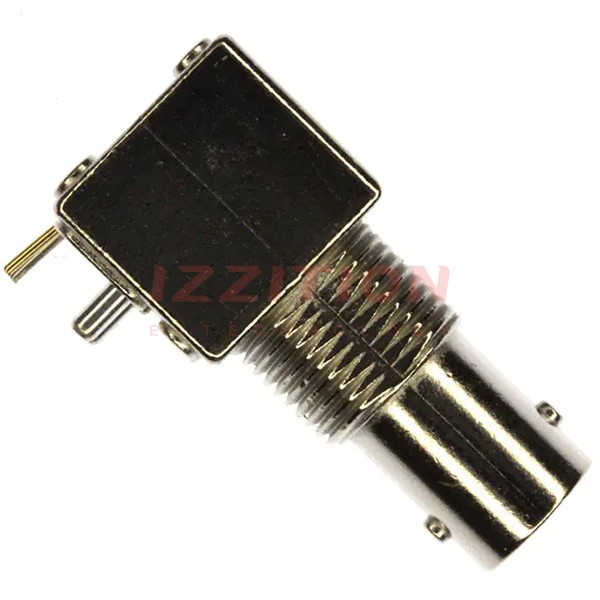

| Part Number | 1-1634508-0 | 1-1634008-0 | 1-1634505-0 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Obsolete | Obsolete |
| Connector Style | BNC | MMCX | BNC |
| Connector Type | Jack, Female Socket | Jack, Female Socket | Jack, Female Socket |
| Contact Termination | Solder | Solder | Solder |
| Shield Termination | Solder | Crimp | Solder |
| Impedance | 75Ohm | 50Ohm | 50Ohm |
| Mounting Type | Panel Mount, Through Hole, Right Angle | Panel Mount | Panel Mount, Through Hole |
| Mounting Feature | Bulkhead - Front Side Nut | Bulkhead - Front Side Nut | Bulkhead - Front Side Nut |
| Cable Group | - | RG-174, 188A, 316 | - |
| Fastening Type | Bayonet Lock | Snap-On | Bayonet Lock |
| Frequency - Max | 2 GHz | 6 GHz | 4 GHz |
| Number of Ports | 1 | 1 | 1 |
| Features | Board Guide | - | Board Guide, Isolated |
| Housing Color | Silver | Gold | Black, Silver |
| Ingress Protection | - | - | - |
| Center Contact Material | Brass | Beryllium Copper | Brass |
