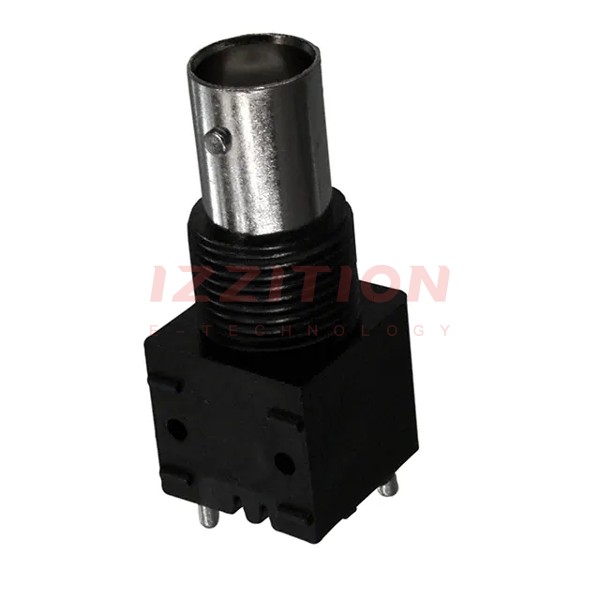

| Part Number | 1-1634505-0 | 1-1634508-0 | 1-1634005-0 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Obsolete | Obsolete |
| Connector Style | BNC | BNC | MMCX |
| Connector Type | Jack, Female Socket | Jack, Female Socket | Jack, Female Socket |
| Contact Termination | Solder | Solder | Solder |
| Shield Termination | Solder | Solder | Crimp |
| Impedance | 50Ohm | 75Ohm | 50Ohm |
| Mounting Type | Panel Mount, Through Hole | Panel Mount, Through Hole, Right Angle | Free Hanging (In-Line) |
| Mounting Feature | Bulkhead - Front Side Nut | Bulkhead - Front Side Nut | - |
| Cable Group | - | - | RG-178, 196A |
| Fastening Type | Bayonet Lock | Bayonet Lock | Snap-On |
| Frequency - Max | 4 GHz | 2 GHz | 6 GHz |
| Number of Ports | 1 | 1 | 1 |
| Features | Board Guide, Isolated | Board Guide | - |
| Housing Color | Black, Silver | Silver | Gold |
| Ingress Protection | - | - | - |
| Center Contact Material | Brass | Brass | Beryllium Copper |
