Please send RFQ , we will respond immediately.

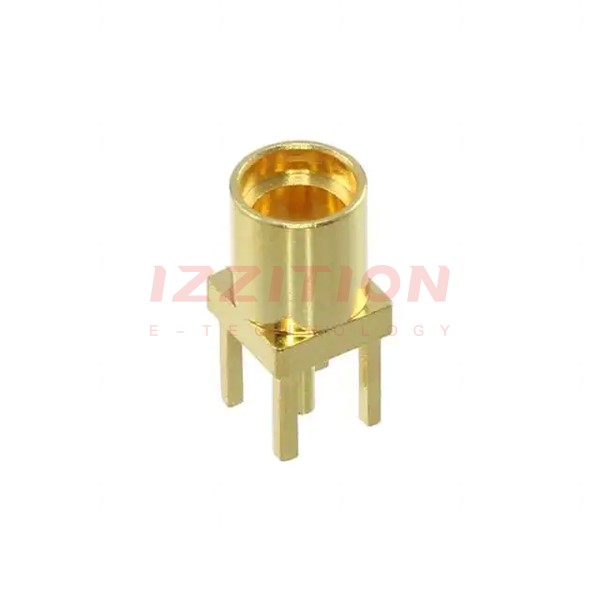

| Part Number | 1-1634009-0 | 1-1634000-0 | 1-1634002-0 | 1-1634003-0 | 1-1634005-0 | 1-1634006-0 | 1-1634007-0 | 1-1634008-0 |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Obsolete | Active | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Connector Style | MMCX | MMCX | MMCX | MMCX | MMCX | MMCX | MMCX | MMCX |
| Connector Type | Receptacle, Female Socket | Plug, Male Pin | Plug, Male Pin | Plug, Male Pin | Jack, Female Socket | Jack, Female Socket | Plug, Male Pin | Jack, Female Socket |
| Contact Termination | Solder | Solder | Solder | Solder | Solder | Solder | Solder | Solder |
| Shield Termination | Solder | Crimp | Crimp | Crimp | Crimp | Crimp | Solder | Crimp |
| Impedance | 50Ohm | 50Ohm | 50Ohm | 50Ohm | 50Ohm | 50Ohm | 50Ohm | 50Ohm |
| Mounting Type | Through Hole | Free Hanging (In-Line) | Free Hanging (In-Line), Right Angle | Free Hanging (In-Line), Right Angle | Free Hanging (In-Line) | Panel Mount | Through Hole | Panel Mount |
| Mounting Feature | - | - | - | - | - | Bulkhead - Front Side Nut | - | Bulkhead - Front Side Nut |
| Cable Group | - | RG-174, 188A, 316 | RG-174, 188A, 316 | RG-178, 196A | RG-178, 196A | RG-178, 196A | - | RG-174, 188A, 316 |
| Fastening Type | Snap-On | Snap-On | Snap-On | Snap-On | Snap-On | Snap-On | Snap-On | Snap-On |
| Frequency - Max | 6 GHz | 6 GHz | 6 GHz | 6 GHz | 6 GHz | 6 GHz | 6 GHz | 6 GHz |
| Number of Ports | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Features | - | - | - | - | - | - | - | - |
| Housing Color | Gold | Gold | Gold | Gold | Gold | Gold | Gold | Gold |
| Ingress Protection | - | - | - | - | - | - | - | - |
| Center Contact Material | Beryllium Copper | Brass | Brass | Brass | Beryllium Copper | Beryllium Copper | Brass | Beryllium Copper |
