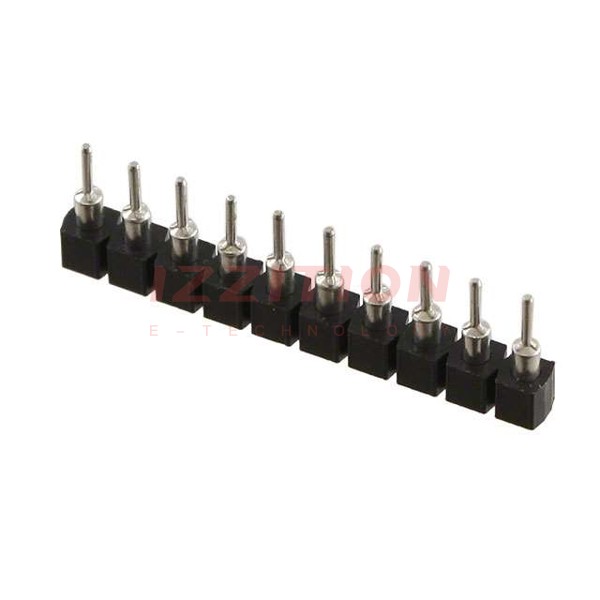

| Part Number | 1-1571994-0 | 1-1571995-0 |
|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Obsolete |
| Type | SIP | SIP |
| Number of Positions or Pins (Grid) | 10 (1 x 10) | 10 (2 x 5) |
| Pitch - Mating | 0.100" (2.54mm) | 0.100" (2.54mm) |
| Contact Finish - Mating | Gold | Tin |
| Contact Finish Thickness - Mating | 20.0µin (0.51µm) | - |
| Contact Material - Mating | Beryllium Copper | Beryllium Copper |
| Mounting Type | Through Hole | Through Hole |
| Features | Closed Frame | Closed Frame |
| Termination | Solder | Solder |
| Pitch - Post | 0.100" (2.54mm) | 0.100" (2.54mm) |
| Contact Finish - Post | Tin | Tin |
| Contact Finish Thickness - Post | 20.0µin (0.51µm) | 20.0µin (0.51µm) |
| Contact Material - Post | Copper | Copper |
| Housing Material | Thermoplastic, Polyester | Thermoplastic, Polyester |
| Operating Temperature | - | - |
