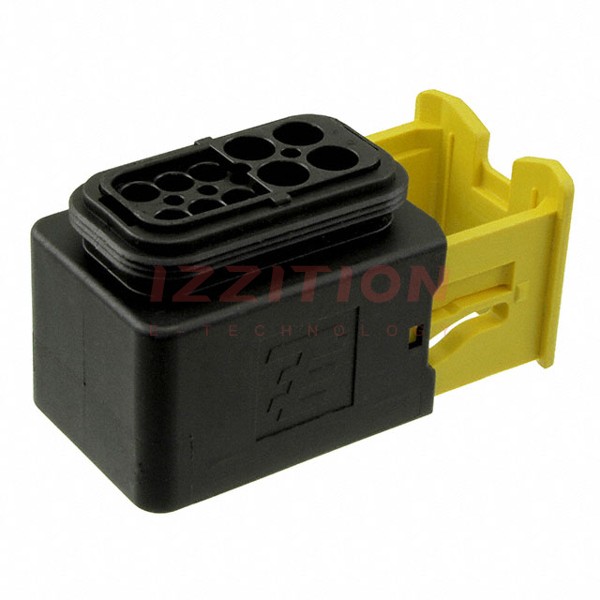

| Part Number | 1-1564514-1 | 1-1564518-1 | 1-1564516-1 | 1-1564534-1 | 1-1564414-1 | 1-1564512-1 |
|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active |
| Connector Type | Receptacle | Plug | Plug | Plug | Plug | Plug |
| Contact Type | Female Socket | Tab | Tab | Tab | Tab | Tab |
| Number of Positions | 10 | 10 | 10 | 4 | 12 | 8 |
| Pitch | - | - | - | 0.354" (9.00mm) | 0.157" (4.00mm) | 0.157" (4.00mm) |
| Number of Rows | 2 | 2 | 2 | 1 | 2 | 2 |
| Row Spacing | 0.236" (6.00mm) | - | 0.236" (6.00mm) | - | 0.236" (6.00mm) | 0.236" (6.00mm) |
| Mounting Type | Free Hanging (In-Line) | Panel Mount | Free Hanging (In-Line) | Panel Mount | Panel Mount | Free Hanging (In-Line) |
| Contact Termination | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp |
| Fastening Type | Slide-On | Slide-On | Slide-On | Slide-On | Slide-On | Slide-On |
| Color | Black | Black | Black | Black | Black | Black |
| Features | Sealed | Mounting Flange, Sealed | Sealed | Sealed | Sealed | Sealed |
