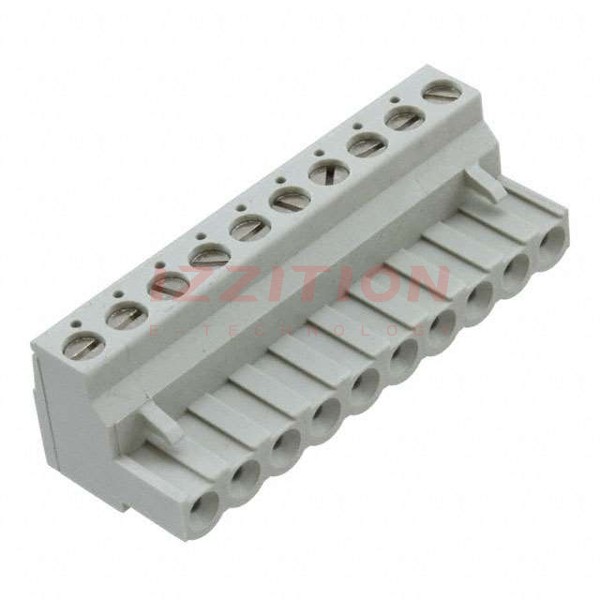

| Part Number | 1-1546108-0 | 1-1546109-0 |
|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Obsolete |
| Type | Plug, Female Sockets | Header, Male Pins, Shrouded (4 Side) |
| Number of Positions | 10 | 10 |
| Positions Per Level | 10 | 10 |
| Number of Levels | 1 | 1 |
| Pitch | 0.200" (5.08mm) | 0.200" (5.08mm) |
| Header Orientation | - | 90°, Right Angle |
| Plug Wire Entry | 180° | - |
| Termination Style | Screw - Rising Cage Clamp | Solder |
| Mounting Type | Free Hanging (In-Line) | Through Hole |
| Current - IEC | - | - |
| Voltage - IEC | - | - |
| Current - UL | 15 A | 15 A |
| Voltage - UL | 300 V | 300 V |
| Wire Gauge or Range - AWG | 12-30 AWG | - |
| Wire Gauge or Range - mm² | 0.05-3mm² | - |
| Color | Gray | Gray |
| Operating Temperature | -40°C ~ 110°C | -40°C ~ 110°C |
| Contact Mating Finish | Tin | Tin |
| Features | Retention Latches (Non-Wire Side) | - |
