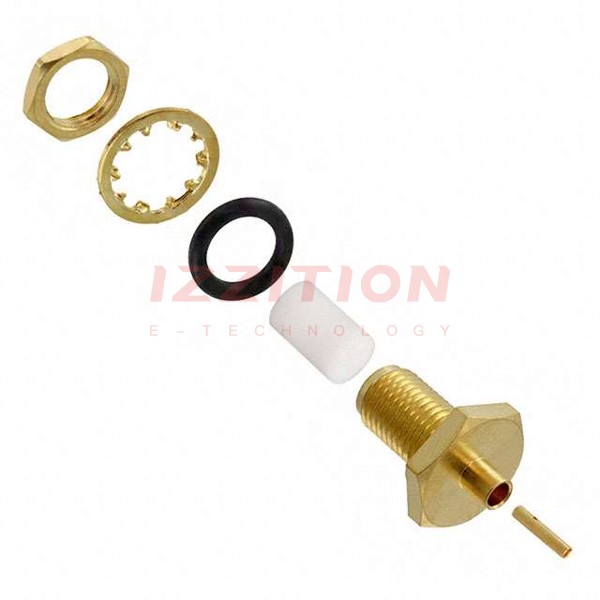

| Part Number | 1-1478988-0 | 1-1478908-0 | 1-1478978-0 | 1-1478987-0 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Obsolete |
| Connector Style | SMA | SMA | SMA | SMA |
| Connector Type | Jack, Female Socket | Plug, Male Pin | Receptacle, Female Socket | Jack, Female Socket |
| Contact Termination | Solder | Solder | Solder | Solder |
| Shield Termination | Solder | Clamp | Solder | Solder |
| Impedance | 50Ohm | 50Ohm | 50Ohm | 50Ohm |
| Mounting Type | Panel Mount | Free Hanging (In-Line) | Through Hole, Right Angle | Panel Mount |
| Mounting Feature | Bulkhead - Front Side Nut | - | - | Bulkhead - Front Side Nut |
| Cable Group | RG-405 (.085" Semi Rigid) | RG-174A, 188A, 316 | - | RG-402 (.141" Semi Rigid) |
| Fastening Type | Threaded | Threaded | Threaded | Threaded |
| Frequency - Max | 18 GHz | 18 GHz | 12.4 GHz | 18 GHz |
| Number of Ports | 1 | 1 | 1 | 1 |
| Features | - | - | - | - |
| Housing Color | Gold | Gold | Gold | Gold |
| Ingress Protection | - | - | - | - |
| Center Contact Material | Beryllium Copper | Brass | Beryllium Copper | Beryllium Copper |
