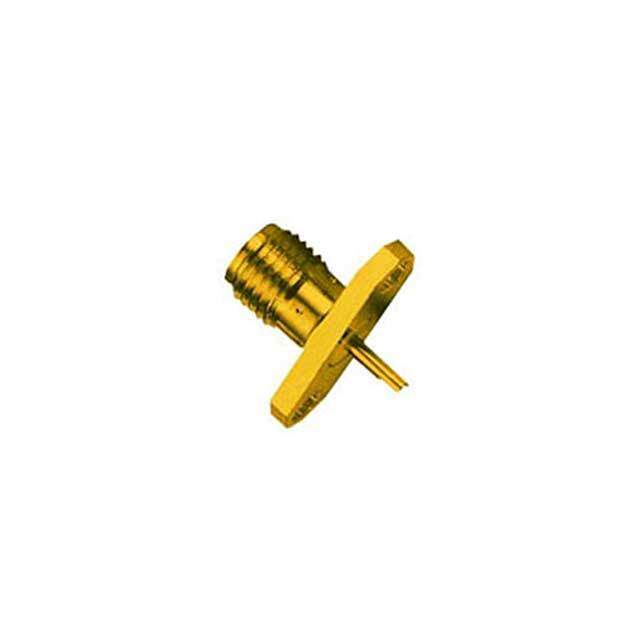

| Part Number | 1-1478963-0 | 1-1478966-0 | 1-1478903-0 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active |
| Connector Style | SMA | SMA | SMA |
| Connector Type | Receptacle, Female Socket | Receptacle, Female Socket | Plug, Male Pin |
| Contact Termination | Solder Cup | Solder Cup | Solder |
| Shield Termination | Solder | Solder | Solder |
| Impedance | 50Ohm | 50Ohm | 50Ohm |
| Mounting Type | Panel Mount | Panel Mount | Free Hanging (In-Line) |
| Mounting Feature | Flange | Bulkhead - Front Side Nut | - |
| Cable Group | - | - | RG-402 (.141" Semi Rigid) |
| Fastening Type | Threaded | Threaded | Threaded |
| Frequency - Max | 18 GHz | 18 GHz | 18 GHz |
| Number of Ports | 1 | 1 | 1 |
| Features | - | Extended Insulation | - |
| Housing Color | Gold | Gold | Gold |
| Ingress Protection | - | - | - |
| Center Contact Material | Beryllium Copper | Beryllium Copper | Brass |
