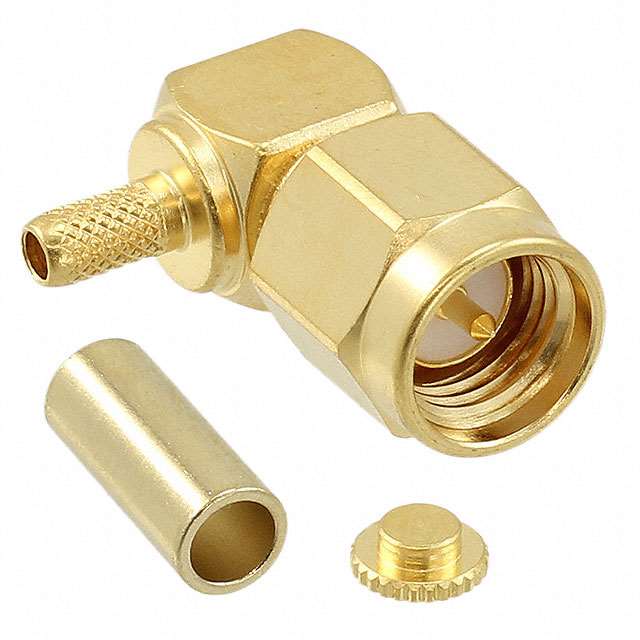

| Part Number | 1-1478924-0 | 1-1478904-0 | 1-1478921-0 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Obsolete |
| Connector Style | SMA | SMA | SMA |
| Connector Type | Plug, Male Pin | Plug, Male Pin | Plug, Male Pin |
| Contact Termination | Solder | Solder | Solder |
| Shield Termination | Crimp | Solder | Crimp |
| Impedance | 50Ohm | 50Ohm | 50Ohm |
| Mounting Type | Free Hanging (In-Line), Right Angle | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Mounting Feature | - | - | - |
| Cable Group | RG-174A, 188A, 316 | RG-405 (.085" Semi Rigid) | RG-55B, 142B, 223, 400 |
| Fastening Type | Threaded | Threaded | Threaded |
| Frequency - Max | 12.4 GHz | 18 GHz | 18 GHz |
| Number of Ports | 1 | 1 | 1 |
| Features | - | - | - |
| Housing Color | Gold | Gold | Gold |
| Ingress Protection | - | - | - |
| Center Contact Material | Brass | Brass | Brass |
