Please send RFQ , we will respond immediately.

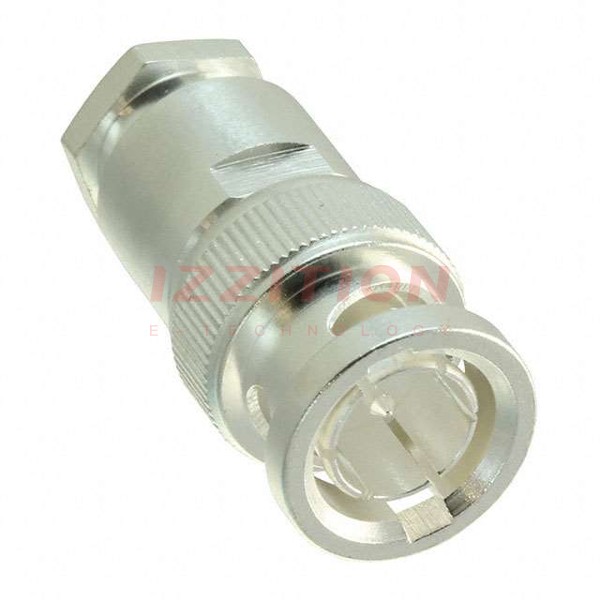

| Part Number | 1-1478408-0 | 1-1478409-0 | 1-1478908-0 | 1-1478400-0 | 1-1478401-0 | 1-1478403-0 | 1-1478404-0 |
|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Active | Active | Active | Active | Obsolete | Obsolete |
| Connector Style | BNC | BNC | SMA | BNC | BNC | BNC | BNC |
| Connector Type | Plug, Male Pin | Jack, Female Socket | Plug, Male Pin | Plug, Male Pin | Plug, Male Pin | Plug, Male Pin | Plug, Male Pin |
| Contact Termination | Solder | Solder | Solder | Solder | Solder | Solder | Solder |
| Shield Termination | Clamp | Clamp | Clamp | Clamp | Clamp | Clamp | Clamp |
| Impedance | 75Ohm | 50Ohm | 50Ohm | 50Ohm | 50Ohm | 75Ohm | 75Ohm |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Mounting Feature | - | - | - | - | - | - | - |
| Cable Group | URM 70 | RG-58C, 188A, 316, URM95 | RG-174A, 188A, 316 | RG-8A, 213 | RG-58C, 141A, Belden 9907 | RG-179B, 187A, URM111 | RG-59B, 62A, 140, 210 |
| Fastening Type | Bayonet Lock | Bayonet Lock | Threaded | Bayonet Lock | Bayonet Lock | Bayonet Lock | Bayonet Lock |
| Frequency - Max | 1 GHz | 4 GHz | 18 GHz | 4 GHz | 4 GHz | 2 GHz | 2 GHz |
| Number of Ports | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Features | - | - | - | - | - | - | - |
| Housing Color | Silver | Silver | Gold | Silver | Silver | Silver | Silver |
| Ingress Protection | - | - | - | - | - | - | - |
| Center Contact Material | Brass | Brass | Brass | Brass | Brass | Brass | Brass |
