1-147424-3
  • Share:

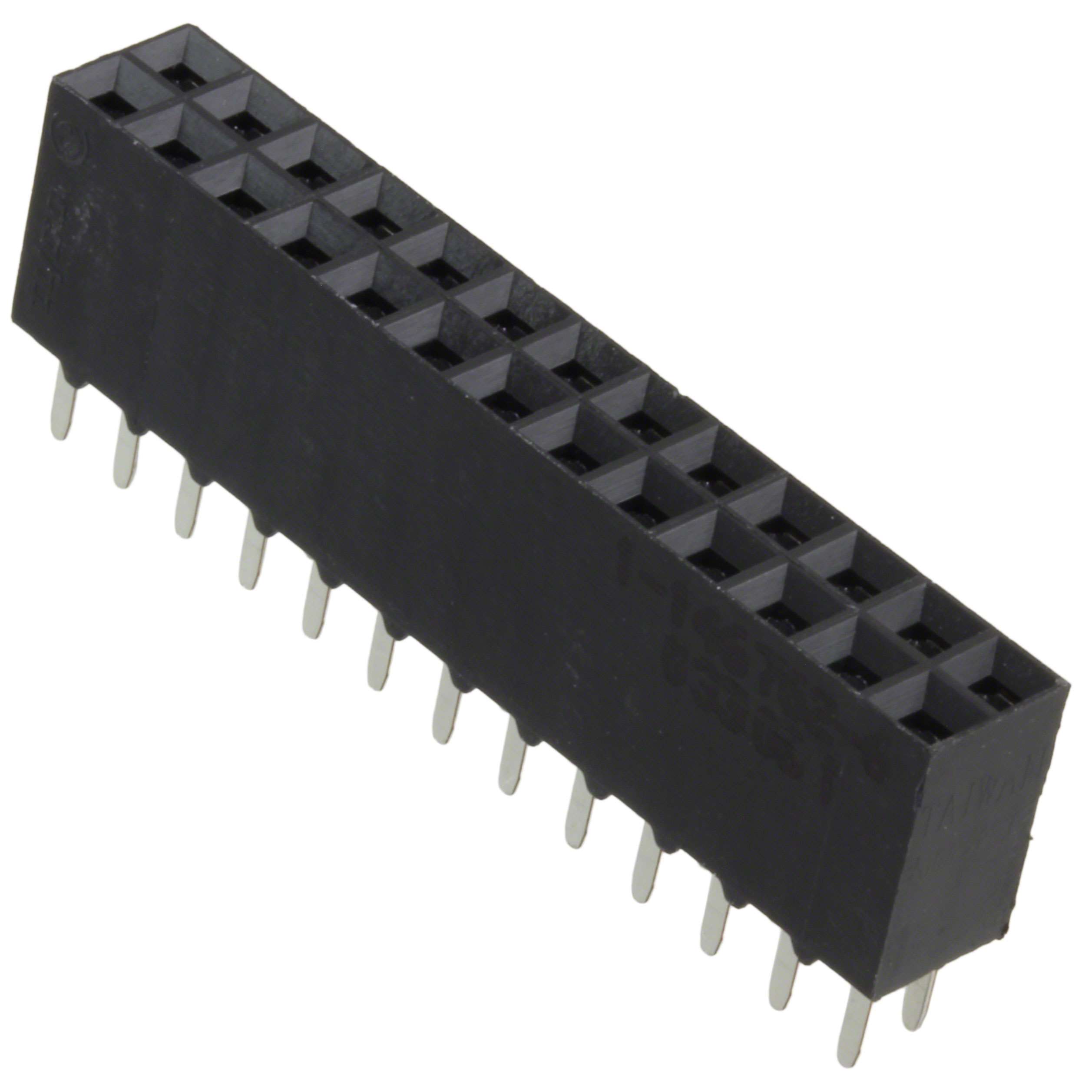

TE Connectivity AMP Connectors 1-147424-3

Manufacturer No:
1-147424-3
Manufacturer:
TE Connectivity AMP Connectors
Package:
Tube
Datasheet:
1-147424-3 Datasheet
ECAD Model:
-
Description:
CONN RCPT 26POS 0.1 GOLD PCB
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Receptacle
Contact Type:Female Socket
Style:Board to Board or Cable
Number of Positions:26
Number of Positions Loaded:All
Pitch - Mating:0.100" (2.54mm)
Number of Rows:2
Row Spacing - Mating:0.100" (2.54mm)
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Push-Pull
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:10.0µin (0.25µm)
Insulation Color:Black
Insulation Height:0.320" (8.13mm)
Contact Length - Post:0.125" (3.18mm)
Operating Temperature:-65°C ~ 125°C
Material Flammability Rating:-
Contact Finish - Post:Tin-Lead
Mated Stacking Heights:-
Ingress Protection:-
Features:-
Current Rating (Amps):2A
Voltage Rating:-
0 Remaining View Similar

In Stock

$2.85
194

Please send RFQ , we will respond immediately.
