1-1452228-9
  • Share:

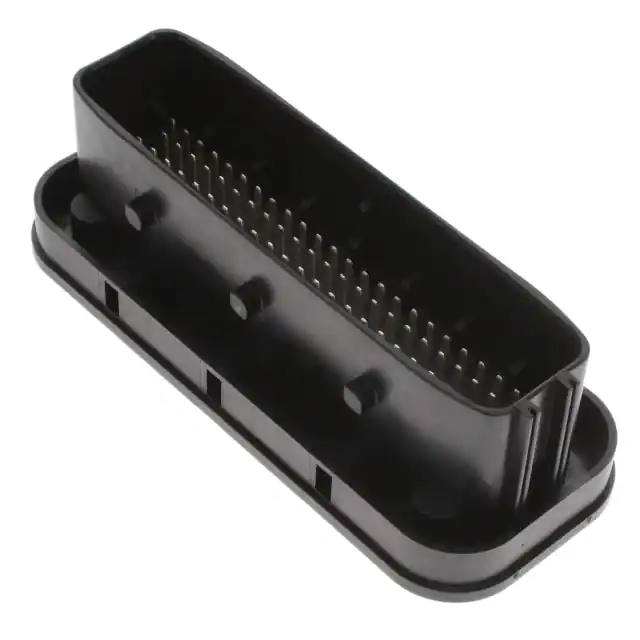

TE Connectivity AMP Connectors 1-1452228-9

Manufacturer No:
1-1452228-9
Manufacturer:
TE Connectivity AMP Connectors
Package:
Tray
Datasheet:
1-1452228-9 Datasheet
ECAD Model:
-
Description:
CONN HEADER VERT 92POS
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Tab
Pitch - Mating:-
Number of Positions:92
Number of Rows:4
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Latch Holder
Contact Length - Mating:-
Contact Length - Post:-
Overall Contact Length:-
Insulation Height:1.476" (37.50mm)
Contact Shape:Rectangular
Contact Finish - Mating:Silver
Contact Finish Thickness - Mating:-
Contact Finish - Post:Tin
Contact Material:Copper Alloy
Insulation Material:-
Features:Mounting Flange, Sealed
Operating Temperature:-
Ingress Protection:-
Material Flammability Rating:-
Insulation Color:Black
Current Rating (Amps):-
Voltage Rating:-
0 Remaining View Similar

In Stock

$75.31
12

Please send RFQ , we will respond immediately.
