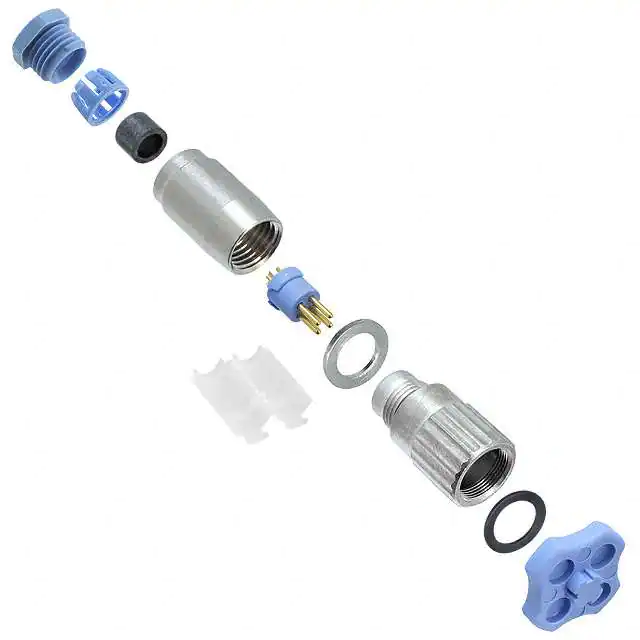

| Part Number | 1-1437719-8 | 1-1437719-5 |
|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active |
| Connector Type | Plug, Male Pins | Plug, Male Pins |
| Number of Positions | 4 | 3 |
| Shell Size - Insert | - | - |
| Shell Size, MIL | - | - |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Mounting Feature | - | - |
| Termination | Solder Cup | Solder Cup |
| Fastening Type | Threaded | Threaded |
| Orientation | Keyed | Keyed |
| Primary Material | Metal | Metal |
| Shell Material | Brass | Brass |
| Shell Finish | Tribor | Tribor |
| Contact Finish - Mating | - | - |
| Color | - | - |
| Ingress Protection | IP65 - Dust Tight, Water Resistant | IP65 - Dust Tight, Water Resistant |
| Material Flammability Rating | UL94 V-2 | UL94 V-2 |
| Features | Strain Relief | Strain Relief |
| Shielding | Shielded | Shielded |
| Current Rating (Amps) | 3A | 3A |
| Voltage Rating | 60VAC | 60VAC |
| Cable Opening | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C |
