1-1418362-1
  • Share:

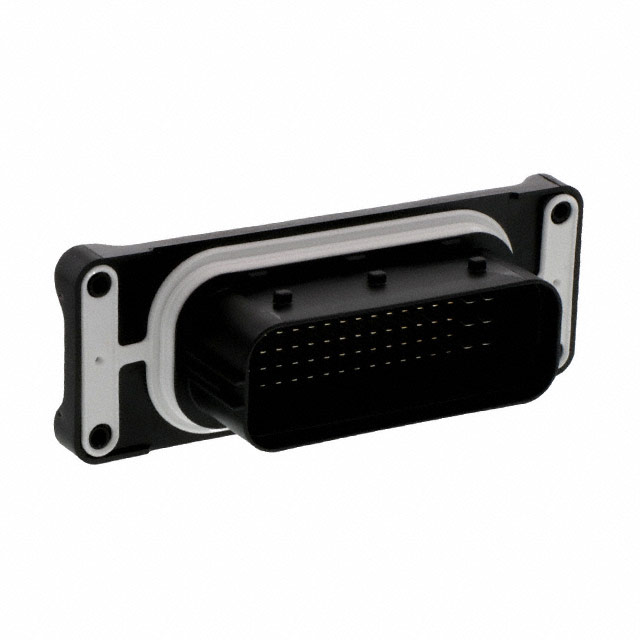

TE Connectivity AMP Connectors 1-1418362-1

Manufacturer No:
1-1418362-1
Manufacturer:
TE Connectivity AMP Connectors
Package:
Tray
Datasheet:
1-1418362-1 Datasheet
ECAD Model:
-
Description:
CONN HEADER VERT 62POS
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Tab
Pitch - Mating:-
Number of Positions:62
Number of Rows:4
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:0.264" (6.70mm)
Contact Length - Post:-
Overall Contact Length:-
Insulation Height:-
Contact Shape:Rectangular
Contact Finish - Mating:Silver
Contact Finish Thickness - Mating:-
Contact Finish - Post:Tin
Contact Material:Copper Alloy
Insulation Material:Polybutylene Terephthalate (PBT), Glass Filled
Features:Board Guide, Mounting Flange, Sealed
Operating Temperature:-
Ingress Protection:-
Material Flammability Rating:-
Insulation Color:Black
Current Rating (Amps):-
Voltage Rating:-
0 Remaining View Similar

In Stock

$45.50
9

Please send RFQ , we will respond immediately.
