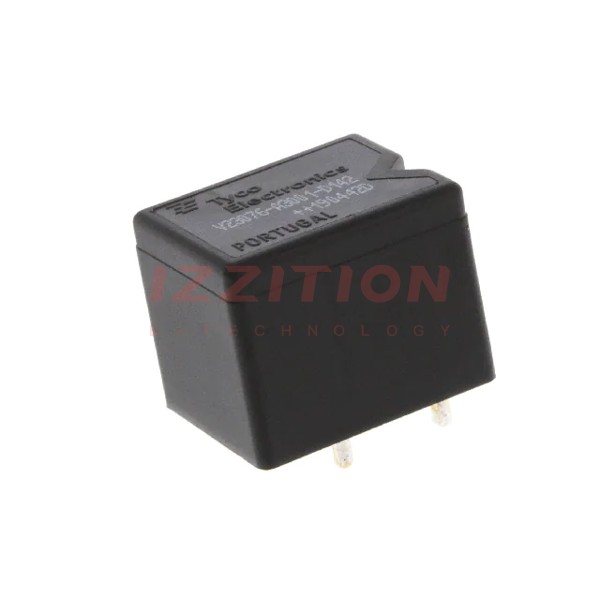

TE Connectivity AMP Connectors 1-1393277-7

Manufacturer No:
1-1393277-7
Manufacturer:
TE Connectivity AMP Connectors
Package:
Bulk
Datasheet:
1-1393277-7 Datasheet
ECAD Model:
-
Description:
RELAY AUTOMOTIVE SPST 40A 12V
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Coil Type:Non Latching
Coil Current:133 mA
Coil Voltage:12VDC
Contact Form:SPST-NO (1 Form A)
Contact Rating (Current):40 A
Switching Voltage:12VDC - Nom
Must Operate Voltage:6.9 VDC
Must Release Voltage:1.2 VDC
Operate Time:5 ms
Release Time:3 ms
Features:Sealed - Fully
Mounting Type:Through Hole
Termination Style:PC Pin
Operating Temperature:-40°C ~ 85°C
0 Remaining View Similar

In Stock

$5.44
66

Please send RFQ , we will respond immediately.
