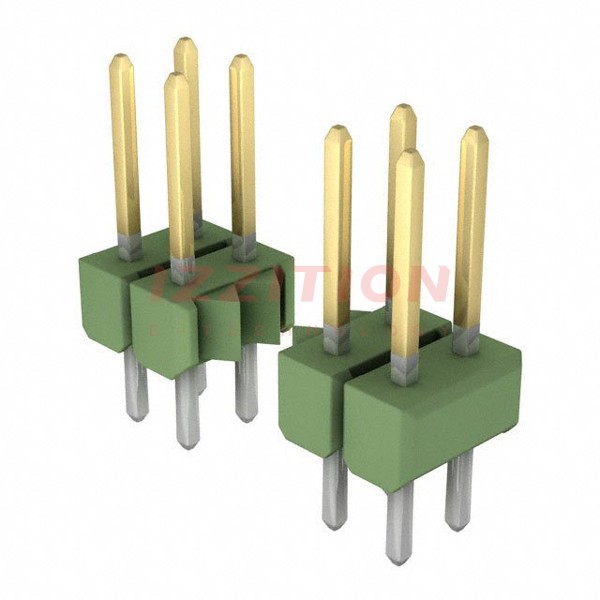

TE Connectivity AMP Connectors 1-1355315-5

Manufacturer No:
1-1355315-5
Manufacturer:
TE Connectivity AMP Connectors
Package:
Bulk
Datasheet:
1-1355315-5 Datasheet
ECAD Model:
-
Description:
CONN HEADER VERT 30POS 2.54MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header, Breakaway
Contact Type:Male Pin
Pitch - Mating:0.100" (2.54mm)
Number of Positions:30
Number of Rows:2
Row Spacing - Mating:0.100" (2.54mm)
Number of Positions Loaded:All
Style:Board to Board or Cable
Shrouding:Unshrouded
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:1.259" (31.98mm)
Contact Length - Post:0.047" (1.20mm)
Overall Contact Length:1.417" (36.00mm)
Insulation Height:0.110" (2.79mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:31.5µin (0.80µm)
Contact Finish - Post:-
Contact Material:Brass
Insulation Material:Polybutylene Terephthalate (PBT)
Features:-
Operating Temperature:-
Ingress Protection:-
Material Flammability Rating:-
Insulation Color:Green
Current Rating (Amps):-
Voltage Rating:-
0 Remaining View Similar

In Stock

-
570

Please send RFQ , we will respond immediately.
