Please send RFQ , we will respond immediately.

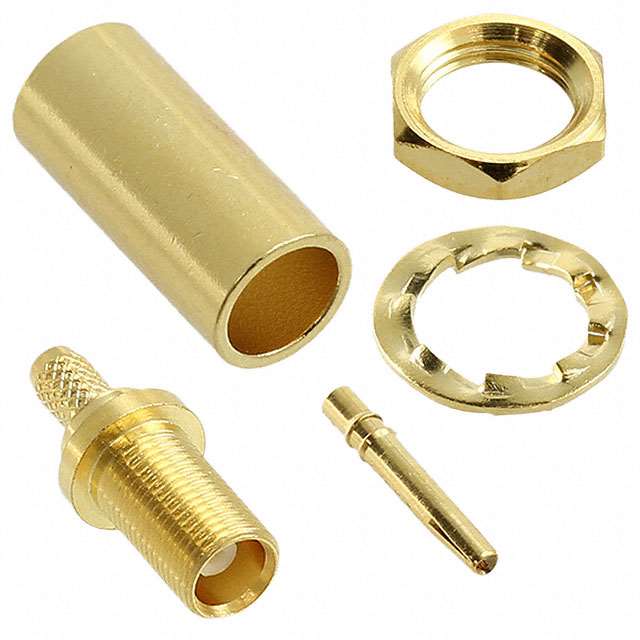

| Part Number | 1-1337588-0 | 1-1337488-0 | 1-1337580-0 | 1-1337581-0 | 1-1337582-0 | 1-1337583-0 | 1-1337584-0 | 1-1337585-0 | 1-1337586-0 |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Active | Last Time Buy | Active | Active | Active | Obsolete | Active | Obsolete |
| Connector Style | MCX | BNC | MCX | MCX | MCX | MCX | MCX | MCX | MCX |
| Connector Type | Jack, Female Socket | Plug, Male Pin | Plug, Male Pin | Jack, Female Socket | Jack, Female Socket | Jack, Female Socket | Plug, Male Pin | Plug, Male Pin | Jack, Female Socket |
| Contact Termination | Crimp | Solder Cup | Solder | Solder | Solder | Solder | Solder | Solder | Solder |
| Shield Termination | Crimp | Solder | Crimp | Solder | Solder | Solder | Crimp | Crimp | Solder |
| Impedance | 50Ohm | 50Ohm | 50Ohm | 50Ohm | 50Ohm | 50Ohm | 50Ohm | 50Ohm | 50Ohm |
| Mounting Type | Panel Mount | Panel Mount | Free Hanging (In-Line) | Through Hole | Surface Mount | Surface Mount, Right Angle | Free Hanging (In-Line), Right Angle | Free Hanging (In-Line), Right Angle | Through Hole, Right Angle |
| Mounting Feature | Bulkhead - Front Side Nut | Flange | - | - | - | - | - | - | - |
| Cable Group | RG-174A, 188A, 316 | - | RG-174, 188, 316 | - | - | - | RG-178B, 196A | RG-174A, 188A, 316 | - |
| Fastening Type | Snap-On | Bayonet Lock | Snap-On | Snap-On | Snap-On | Snap-On | Snap-On | Snap-On | Snap-On |
| Frequency - Max | 6 GHz | 4 GHz | 6 GHz | 6 GHz | 6 GHz | 6 GHz | 6 GHz | 6 GHz | 6 GHz |
| Number of Ports | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Features | - | Extended Insulation | - | - | - | - | - | - | - |
| Housing Color | Gold | Silver | Gold | Gold | Gold | Gold | Gold | Gold | Gold |
| Ingress Protection | - | - | - | - | - | - | - | - | - |
| Center Contact Material | Beryllium Copper | Brass | Brass | Beryllium Copper | Phosphor Bronze | Beryllium Copper | Brass | Brass | Phosphor Bronze |
