Please send RFQ , we will respond immediately.

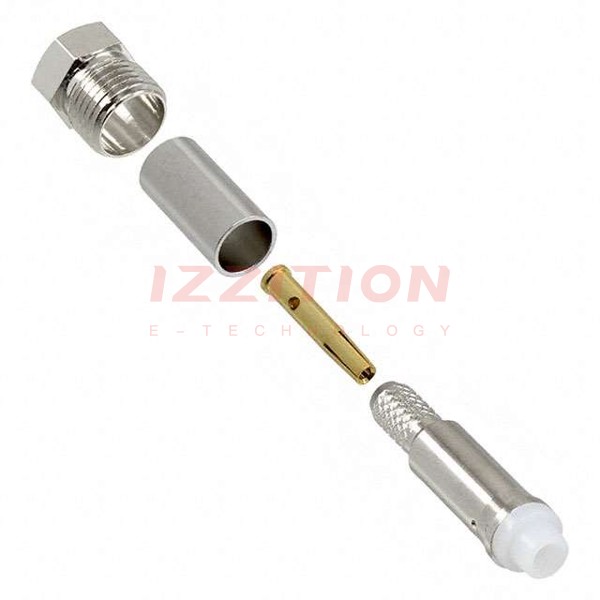

| Part Number | 1-1337552-0 | 1-1337582-0 | 1-1337452-0 | 1-1337542-0 | 1-1337551-0 |
|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Obsolete | Active |
| Connector Style | FME | MCX | BNC | BNC | FME |
| Connector Type | Jack, Female Socket | Jack, Female Socket | Jack, Female Socket | Jack, Female Socket | Jack, Female Socket |
| Contact Termination | Solder | Solder | Solder Cup | Solder | Solder |
| Shield Termination | Crimp | Solder | Solder | Solder | Crimp |
| Impedance | 50Ohm | 50Ohm | 50Ohm | 50Ohm | 50Ohm |
| Mounting Type | Free Hanging (In-Line) | Surface Mount | Panel Mount | Panel Mount, Through Hole, Right Angle | Free Hanging (In-Line) |
| Mounting Feature | - | - | Bulkhead - Rear Side Nut | Bulkhead - Front Side Nut | - |
| Cable Group | RG-58C, 141A, Belden 9907, KX15, URM43, 76 | - | - | - | RG-174A, 188A, 316 |
| Fastening Type | Threaded | Snap-On | Bayonet Lock | Bayonet Lock | Threaded |
| Frequency - Max | 2 GHz | 6 GHz | 4 GHz | 4 GHz | 2 GHz |
| Number of Ports | 1 | 1 | 1 | 1 | 1 |
| Features | - | - | Isolated | Board Guide, Isolated | - |
| Housing Color | Silver | Gold | Silver, White | Silver, White | Silver |
| Ingress Protection | - | - | - | - | - |
| Center Contact Material | Brass | Phosphor Bronze | Brass | Brass | Brass |
