Please send RFQ , we will respond immediately.

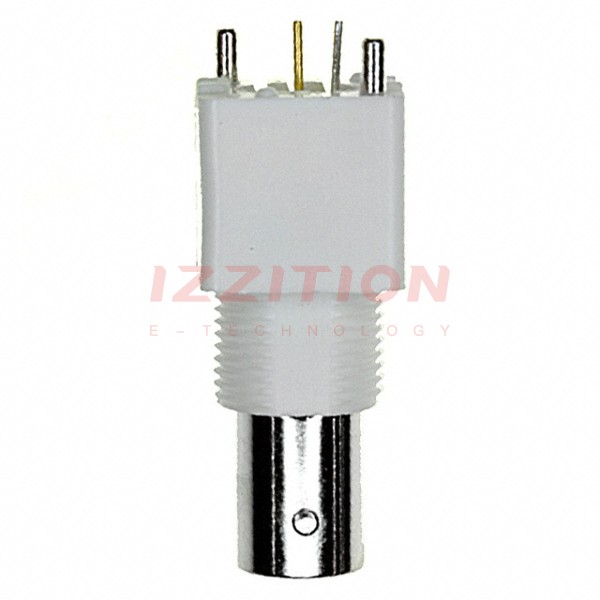

| Part Number | 1-1337541-0 | 1-1337551-0 | 1-1337581-0 | 1-1337542-0 | 1-1337543-0 |
|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Active | Active | Obsolete | Obsolete |
| Connector Style | BNC | FME | MCX | BNC | BNC |
| Connector Type | Jack, Female Socket | Jack, Female Socket | Jack, Female Socket | Jack, Female Socket | Jack, Female Socket |
| Contact Termination | Solder | Solder | Solder | Solder | Solder |
| Shield Termination | Solder | Crimp | Solder | Solder | Solder |
| Impedance | 50Ohm | 50Ohm | 50Ohm | 50Ohm | 50Ohm |
| Mounting Type | Panel Mount, Through Hole | Free Hanging (In-Line) | Through Hole | Panel Mount, Through Hole, Right Angle | Panel Mount, Through Hole, Right Angle |
| Mounting Feature | Bulkhead - Front Side Nut | - | - | Bulkhead - Front Side Nut | Bulkhead - Front Side Nut |
| Cable Group | - | RG-174A, 188A, 316 | - | - | - |
| Fastening Type | Bayonet Lock | Threaded | Snap-On | Bayonet Lock | Bayonet Lock |
| Frequency - Max | 4 GHz | 2 GHz | 6 GHz | 4 GHz | 4 GHz |
| Number of Ports | 1 | 1 | 1 | 1 | 1 |
| Features | Board Guide, Isolated | - | - | Board Guide, Isolated | Board Guide, Isolated |
| Housing Color | Silver, White | Silver | Gold | Silver, White | Silver, White |
| Ingress Protection | - | - | - | - | - |
| Center Contact Material | Brass | Brass | Beryllium Copper | Brass | Brass |
