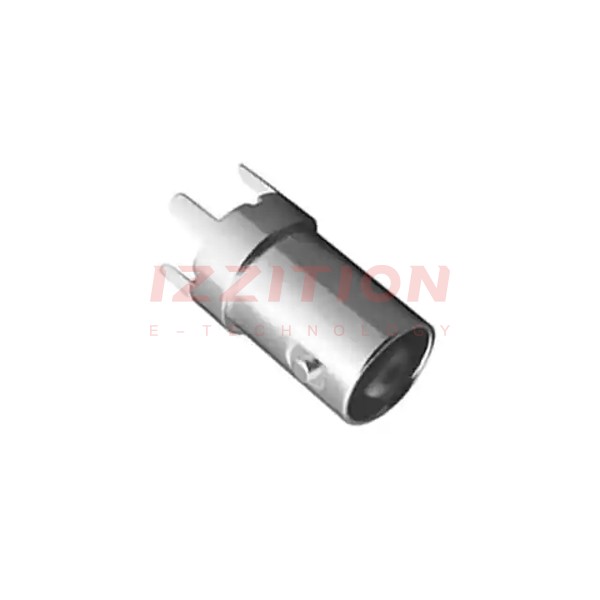

| Part Number | 1-1337535-0 | 1-1337585-0 | 1-1337435-0 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Active | Obsolete |
| Connector Style | BNC | MCX | BNC |
| Connector Type | Jack, Female Socket | Plug, Male Pin | Jack, Female Socket |
| Contact Termination | Solder | Solder | Solder |
| Shield Termination | Solder | Crimp | Crimp |
| Impedance | 50Ohm | 50Ohm | 75Ohm |
| Mounting Type | Through Hole | Free Hanging (In-Line), Right Angle | Panel Mount |
| Mounting Feature | - | - | Bulkhead - Front Side Nut |
| Cable Group | - | RG-174A, 188A, 316 | RG-59B, 62A, 140, 210 |
| Fastening Type | Bayonet Lock | Snap-On | Bayonet Lock |
| Frequency - Max | 4 GHz | 6 GHz | 2 GHz |
| Number of Ports | 1 | 1 | 1 |
| Features | - | - | - |
| Housing Color | Silver | Gold | Silver |
| Ingress Protection | - | - | - |
| Center Contact Material | Brass | Brass | Phosphor Bronze |
