Please send RFQ , we will respond immediately.

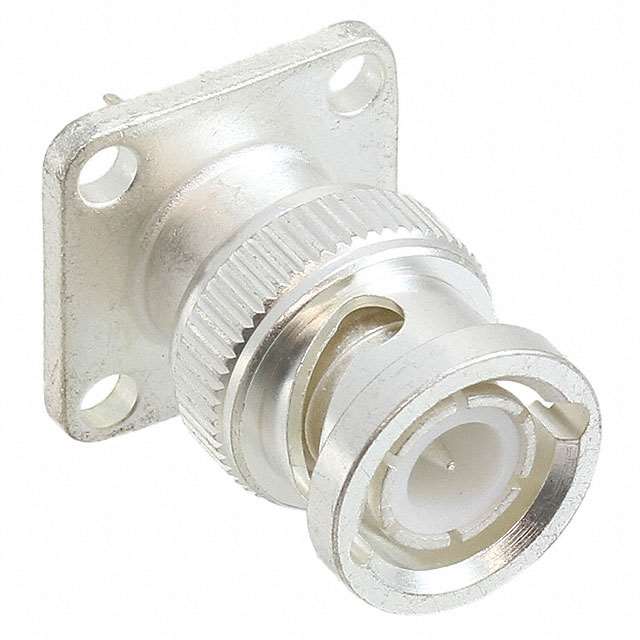

| Part Number | 1-1337488-0 | 1-1337588-0 | 1-1337418-0 | 1-1337428-0 | 1-1337448-0 | 1-1337478-0 | 1-1337480-0 | 1-1337481-0 | 1-1337482-0 |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Obsolete | Obsolete | Last Time Buy | Active | Active | Active | Active | Obsolete |
| Connector Style | BNC | MCX | N Type | BNC | BNC | SMB | SMB | SMB | SMB |
| Connector Type | Plug, Male Pin | Jack, Female Socket | Jack, Female Socket | Plug, Male Pin | Jack, Female Socket | Plug, Female Socket | Plug, Female Socket | Jack, Male Pin | Jack, Male Pin |
| Contact Termination | Solder Cup | Crimp | Solder Cup | Solder | Solder Cup | Solder | Solder Cup | Solder | Solder |
| Shield Termination | Solder | Crimp | Solder | Crimp | Solder Tag | Crimp | Solder | Solder | Solder |
| Impedance | 50Ohm | 50Ohm | 50Ohm | 75Ohm | 50Ohm | 50Ohm | 50Ohm | 50Ohm | 50Ohm |
| Mounting Type | Panel Mount | Panel Mount | Panel Mount | Free Hanging (In-Line) | Panel Mount | Free Hanging (In-Line), Right Angle | Panel Mount | Through Hole, Right Angle | Through Hole |
| Mounting Feature | Flange | Bulkhead - Front Side Nut | Flange | - | Bulkhead - Rear Side Nut | - | Bulkhead - Rear Side Nut | - | - |
| Cable Group | - | RG-174A, 188A, 316 | - | RG-59B, 62A, 140, 210 | - | RG-174A, 188A, 316 | - | - | - |
| Fastening Type | Bayonet Lock | Snap-On | Threaded | Bayonet Lock | Bayonet Lock | Snap-On | Snap-On | Snap-On | Snap-On |
| Frequency - Max | 4 GHz | 6 GHz | 11 GHz | 2 GHz | 4 GHz | 4 GHz | 4 GHz | 4 GHz | 4 GHz |
| Number of Ports | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Features | Extended Insulation | - | - | - | Extended Insulation | - | - | - | - |
| Housing Color | Silver | Gold | Silver | Silver | Silver | Silver | Gold | Gold | Gold |
| Ingress Protection | - | - | - | - | - | - | - | - | - |
| Center Contact Material | Brass | Beryllium Copper | Brass | Brass | Phosphor Bronze | Beryllium Copper | Brass | Brass | Brass |
