Please send RFQ , we will respond immediately.

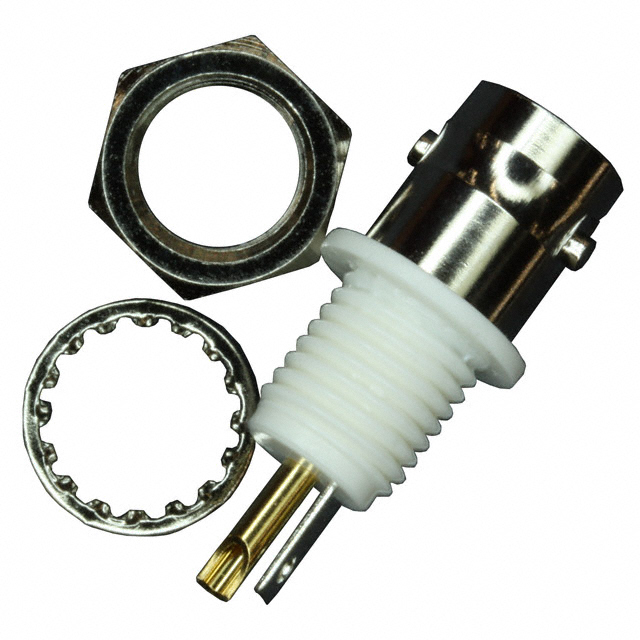

| Part Number | 1-1337452-0 | 1-1337552-0 | 1-1337482-0 | 1-1337472-0 | 1-1337402-0 | 1-1337422-0 | 1-1337442-0 | 1-1337451-0 |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Obsolete | Obsolete | Obsolete | Obsolete | Active | Active |
| Connector Style | BNC | FME | SMB | TNC | N Type | BNC | BNC | BNC |
| Connector Type | Jack, Female Socket | Jack, Female Socket | Jack, Male Pin | Jack, Female Socket | Plug, Male Pin | Plug, Male Pin | Jack, Female Socket | Jack, Female Socket |
| Contact Termination | Solder Cup | Solder | Solder | Solder Cup | Solder | Solder | Solder | Solder Cup |
| Shield Termination | Solder | Crimp | Solder | Solder | Clamp | Clamp | Crimp | Solder |
| Impedance | 50Ohm | 50Ohm | 50Ohm | 50Ohm | 50Ohm | 75Ohm | 50Ohm | 50Ohm |
| Mounting Type | Panel Mount | Free Hanging (In-Line) | Through Hole | Panel Mount | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Panel Mount |
| Mounting Feature | Bulkhead - Rear Side Nut | - | - | Flange | - | - | - | Bulkhead - Rear Side Nut |
| Cable Group | - | RG-58C, 141A, Belden 9907, KX15, URM43, 76 | - | - | RG-8A, 213 | RG-59B, 62A, 140, 210 | RG-58C, 141A | - |
| Fastening Type | Bayonet Lock | Threaded | Snap-On | Threaded | Threaded | Bayonet Lock | Bayonet Lock | Bayonet Lock |
| Frequency - Max | 4 GHz | 2 GHz | 4 GHz | 11 GHz | 11 GHz | 2 GHz | 4 GHz | 4 GHz |
| Number of Ports | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Features | Isolated | - | - | - | - | - | - | Extended Insulation |
| Housing Color | Silver, White | Silver | Gold | Silver | Silver | Silver | Silver | Silver |
| Ingress Protection | - | - | - | - | - | - | - | - |
| Center Contact Material | Brass | Brass | Brass | Brass | Brass | Brass | Brass | Brass |
