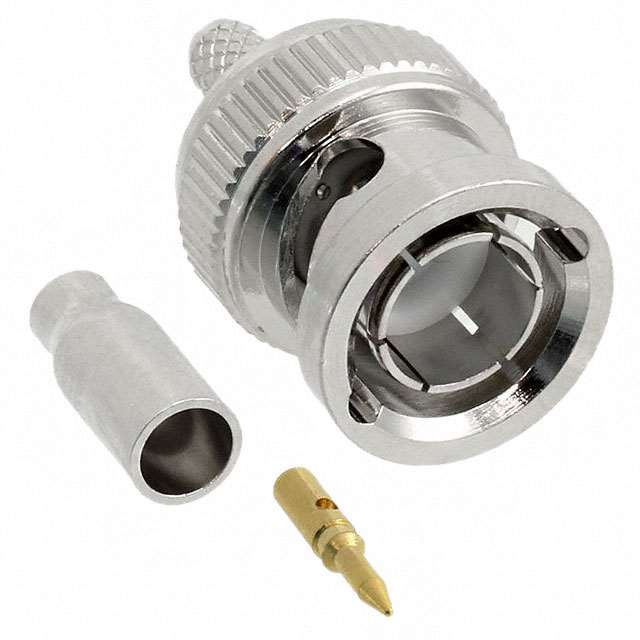

| Part Number | 1-1337431-0 | 1-1337481-0 | 1-1337451-0 | 1-1337433-0 | 1-1337435-0 | 1-1337439-0 | 1-1337421-0 |
|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Obsolete | Obsolete | Obsolete |
| Connector Style | BNC | SMB | BNC | BNC | BNC | BNC | BNC |
| Connector Type | Plug, Male Pin | Jack, Male Pin | Jack, Female Socket | Jack, Female Socket | Jack, Female Socket | Plug, Male Pin | Plug, Male Pin |
| Contact Termination | Solder | Solder | Solder Cup | Solder | Solder | Solder | Solder |
| Shield Termination | Crimp | Solder | Solder | Crimp | Crimp | Crimp | Clamp |
| Impedance | 75Ohm | 50Ohm | 50Ohm | 50Ohm | 75Ohm | 50Ohm | 50Ohm |
| Mounting Type | Free Hanging (In-Line) | Through Hole, Right Angle | Panel Mount | Panel Mount | Panel Mount | Free Hanging (In-Line), Right Angle | Free Hanging (In-Line) |
| Mounting Feature | - | - | Bulkhead - Rear Side Nut | Bulkhead - Front Side Nut | Bulkhead - Front Side Nut | - | - |
| Cable Group | RG-179B, 187A | - | - | RG-58C, 141A, Belden 9907 | RG-59B, 62A, 140, 210 | RG-174A, 188A, 316 | RG-58C, 141A, Belden 9907 |
| Fastening Type | Bayonet Lock | Snap-On | Bayonet Lock | Bayonet Lock | Bayonet Lock | Bayonet Lock | Bayonet Lock |
| Frequency - Max | 2 GHz | 4 GHz | 4 GHz | 4 GHz | 2 GHz | 4 GHz | 4 GHz |
| Number of Ports | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Features | - | - | Extended Insulation | - | - | - | - |
| Housing Color | Silver | Gold | Silver | Silver | Silver | Silver | Silver |
| Ingress Protection | - | - | - | - | - | - | - |
| Center Contact Material | Brass | Brass | Brass | Brass | Phosphor Bronze | Brass | Brass |
